| Brand Name: | Bestone |
| Model Number: | SL-1256DOS |
| MOQ: | 1 |
| Price: | US$235 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union,MoneyGram |

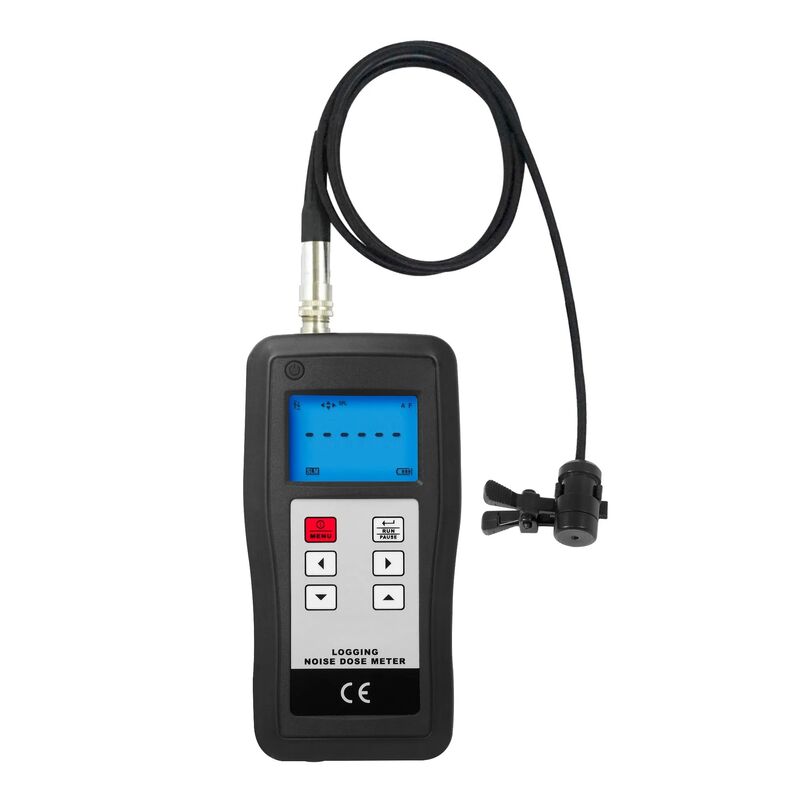

The meter is ideal for quick on–site surveys and for monitoring personal noise exposure in accordance with European ISO or USA OSHA, MSHA, DOD AND ACGIH standards.
The meter is two overlapping measurement ranges : 60 – 130 & 70 – 140dB, A & C RMS weightings, Linear & C Peak weightings, Fast & Slow time weightings, and energy exchange rates (Q) of 3, 4, 5 & 6. In dose measurement mode, it display % dose, % dose projected for an 8 hour period, peak level and measurement duration.
For countries that are subject to European Union regulations or the equivalent ISO standards, the meter measure the daily sound exposure level (LAeq,8hr,Pa2h according to IEC 61252, which is identical with the L EX,8h required by ISO 1999), while for USA OSHA/MSHA regulations they measure the Time Weighted Average level (TWA).
When used as a sound level meter it display sound level, time–averaged (L Aeq) sound level, peak and sound exposure level (SEL).
The meter is automatic run timing facilities controlled by the built-in clock and time–history recording capabilities. Sampling times can be specified between 1s and 1 hour, while storage is 120000 data points.
The meter is able to measure and save up to five specified Ln values (Statistical noise levels). Run duration, start and stop times preset, and other setting via the meter keys
This personal noise dose meter evaluates workplace noise conditions by measuring accumulated noise exposure. The data helps companies comply with noise regulations and implement necessary noise reduction measures to prevent acoustic trauma and noise-induced hearing loss among personnel.
The meter quantifies noise exposure using the DOSE parameter, representing % noise exposure relative to 90dBA for 8 hours (100% DOSE). Different criteria are available to meet international legislation requirements. The device supports both 3dB and 5dB exchange rates, where sound level increases correspond to dose doubling at different rates.
| Standard Applied | IEC61252, ANSI S1.25-1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2 |
| Microphone | 1/2-inch electret condenser microphone with 31-inch integral cable |
| Display | Liquid Crystal Display |
| Measurement Ranges (Linearity and Indicator ranges at 4KHz) | 60 – 130: 60 – 130dB (A and C) |
| 70 – 140: 70 – 140dB (A and C) | |
| Peak Ranges (C-weighted or Linear Peak over the top 40dB of each measurement range) | 60 – 130: 93 – 133dB Peak |
| 70 – 140: 103 – 143dB Peak | |
| Frequency Weightings | RMS Detector: A or C |
| Peak Detector: C or Z (Linear) | |
| Time Weightings | Fast and Slow (RMS detector) |
| Exchange Rate | 3, 4, 5 or 6dB |
| Stabilization Time | 10 seconds from power on |
| Threshold and Criterion Levels (From the setup, predefined in the built-in setup according to applicable standards) | User–defined setups in the following ranges: |
| Threshold Level: 70-90dB in 1dB steps | |
| Criterion Level: 80, 84, 85 or 90dB | |
| Criterion Level: 80, 84, 85 or 90dB | At 0.1dB above the top of the selected measurement range |
| At 0.1dB above the top of the selected measurement range | Under–Range Indications |
| High Level Detector | 115dB |
| Keypad Lock | Lock and unlock by pressing key combinations: Up and right arrows to lock; left and down arrows to unlock |
| Clock | Real–time clock with calendar |
| Memory | Results from 50 measurements can be stored for later viewing and download |
| Measurement Control | Measurement Duration: May be set to 5, 10, 15, or 30 minutes or 1, 2, 4, 8, 10, 12, or 24 hours |
| Timers | Up to 16 timers (automatic start and stop) can be set (maximum up to one month ahead of measurement time) |
| Timer Controlled Started / Stop | Set up from the meter keypad |
| Logging | All measurement parameters values can be logged |
| Logging Period (LP) | 1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min |
| Logging Capacity | 120000 values can be stored at any one time |
| Setup | Eight built–in (predefined) default setups are included. Nine additional user–defined setups can be stored |
| Output | USB interface |
| Power Supply | 4x1.5V AAA Size (UM-4) Battery |
| Battery Indicator | Symbol indication battery voltage level in 4 steps. Indicator flashes when voltage is insufficient for operation |
| Operating Temperature & Humidity | 0-50ºC (32 to 122ºF) ,10-90%RH |
| Storage Temperature & Humidity | -10-60ºC (14 to 140ºF) ,10-75%RH |
| Size | 140x72x34mm |
| Weight | Approx. 350g (including batteries) |
| Standard Accessories | Main Unit |
| External Probe | |
| Screwdriver | |
| Carrying Case (B04) | |
| Operation Manual |
| Setup | OSHA-80 | OSHA-90 | MSHA-80 | MSHA-90 | DOD | ACGIH | ISO-85 | ISO-90 | User1-9 | SLM |
|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Range (dB) | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 | 70–140 |
| Time Weighting | Slow | Slow | Slow | Slow | Slow | Slow | Fast | Fast | Fast | Slow |
| Frequency Weighting | A | A | A | A | A | A | A | A | A | A |
| Peak Frequency Weighting | Lin | Lin | Lin | Lin | Lin | Lin | C | C | C | Lin |
| Exchange Rate | 5 | 5 | 5 | 5 | 4 | 3 | 3 | 3 | 3 | 3 |
| Threshold (dB) | 80 | 90 | 80 | 90 | 80 | 80 | 70 | 70 | 80 | N/A |
| Criterion Level (dB) | 90 | 90 | 90 | 90 | 85 | 85 | 85 | 90 | 90 | N/A |
| Allow User to Change Setup | No | No | No | No | No | No | No | No | Yes | Yes |
| OSHA-80 | OSHA-90 | MSHA-80 | MSHA-90 | DOD | ACGIH | ISO–85 | ISO–90 | User1-9 | SLM |
|---|---|---|---|---|---|---|---|---|---|
| DOSE% | DOSE% | DOSE% | DOSE% | DOSE% | DOSE% | DOSE% | DOSE% | DOSE% | SPL |
| PDOSE% | PDOSE% | PDOSE% | PDOSE% | PDOSE% | PDOSE% | PDOSE% | PDOSE% | PDOSE% | MAX |
| TWA | TWA | TWA | TWA | TWA | LEPd | LEPd | LEPd | TWA | LEQ |
| PTWA | PTWA | PTWA | PTWA | PTWA | LEQ | LEQ | LEQ | PTWA | PKZ |
| LAVG | LAVG | LAVG | LAVG | LAVG | SEL | SEL | SEL | LAVG | SEL |
| LEQ | LEQ | LEQ | LEQ | LEQ | SE(Pa2h) | SE(Pa2h) | SE(Pa2h) | LEPd | |
| SEL | SEL | SEL | SEL | SEL | MAX | MAX | MAX | LEQ | |
| MAX | MAX | MAX | MAX | MAX | PKZ | PKZ | PKZ | SEL | |
| PKZ | PKZ | PKZ | PKZ | PKZ | L10 | L10 | L10 | SE(Pa2h) | |
| L10 | L10 | L10 | L10 | L10 | L50 | L50 | L50 | MAX | |
| L50 | L50 | L50 | L50 | L50 | L90 | L90 | L90 | PKZ | |
| L90 | L90 | L90 | L90 | L90 | L95 | L95 | L95 | L10 | |
| L95 | L95 | L95 | L95 | L95 | L99 | L99 | L99 | L50 | |
| L99 | L99 | L99 | L99 | L99 | SPL | SPL | SPL | L90 | |
| SPL | SPL | SPL | SPL | SPL | L95 | ||||
| 99 | |||||||||
| SPL |
