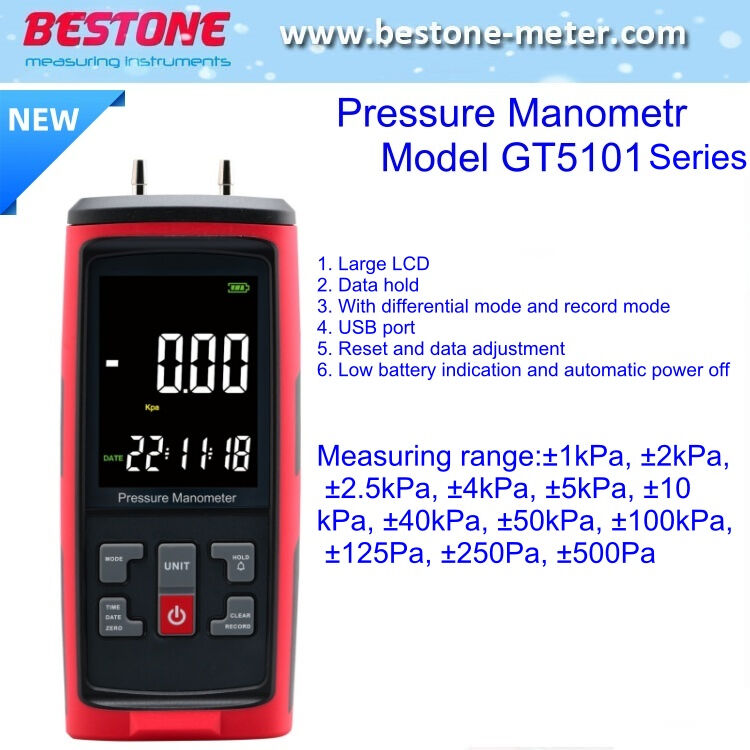

Widely used to measure fan and blower pressure, filter resistance, air speed, furnace pressure, orifice plate differential pressure, etc. It is also used for air to gas ratio control and automatic valve control in combustion processes, and for blood pressure and respiratory pressure monitoring in healthcare equipment.
1. Large LCD
2. Data hold
3. With differential mode and record mode
4. USB port
5. Reset and data adjustment
6. Low battery indication and automatic power off
1. Measuring range:±125Pa, ±250Pa, ±500Pa,±1kPa, ±2kPa, ±2.5kPa, ±4kPa, ±5kPa, ±10kPa, ±40kPa, ±50kPa, ±100kPa,
2. Standby current:3.5uA;
3. Working current:90mA(turn off the buzzer when the lithium battery voltage is 4.2V);
4. Power:400mW(turn off the buzzer alarm)
5. Power supply: LP803040-1000mAH(rechargeable lithium battery)
6. Temperature compensation range:-5ºC to 50ºC;
7. Overload pressured:x3 fs
8. accuracy(total error):±1%FS(differential pressure gauge with range of greater than or equal to ±1kpa range)
±2%FS(differential pressure gauge with range of less than ±1kpa)
9. Operating temperature range:-10ºC to 60ºC
10. Weight:277.8g(Including Batteries)
11.Dimension:171.4*38*76.5 mm
12.Warranty: 12 Months
