| Brand Name: | WINTACT,BESTONE |
| Model Number: | WT5110 Series |
| MOQ: | 40 |
| Price: | EXW US$35~US$70 |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union |

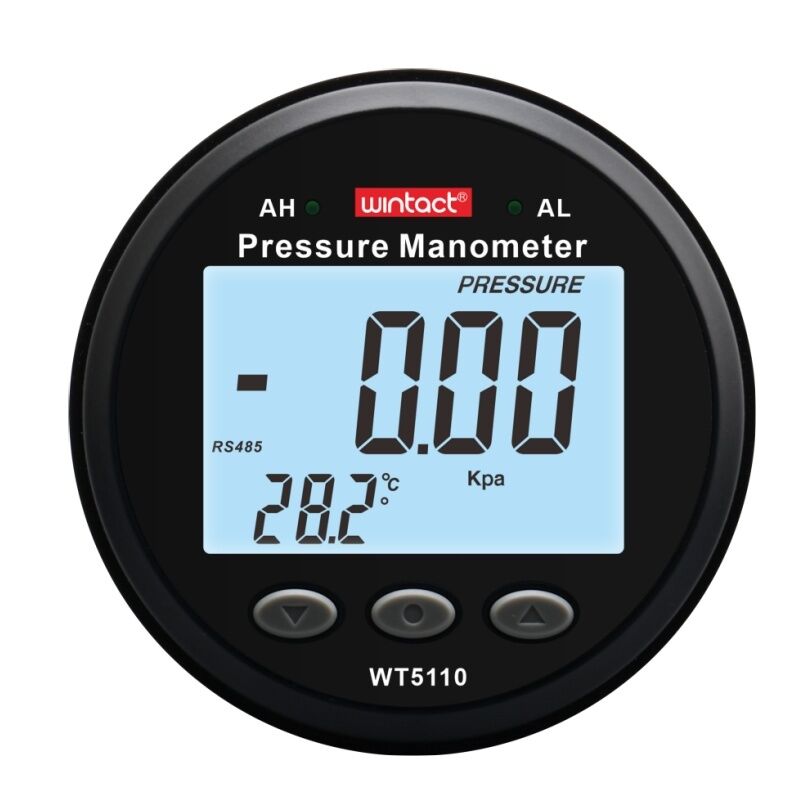

This product offers 12 selectable pressure units: bar, mbar, Kpa, Kgf/cm², mmHg, cmH₂O, Ozf/in², Psi, inHg, inH₂O, ftH₂O, Pa. It is widely used for measuring fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice differential pressure, and more. Applications also include air gas ratio control and automatic valve control during combustion processes, as well as blood pressure and respiratory pressure monitoring in healthcare equipment.
| Parameter | Specification |
|---|---|
| Measuring Range | ±125Pa, ±250Pa, ±500Pa, ±1Kpa, ±2.5Kpa, ±5Kpa, ±10Kpa, ±50Kpa, ±100Kpa |
| Operating Temperature Range | -10℃ ~ 60℃ |
| Operating Humidity Range | 10%~60% RH |
| Temperature Accuracy | ±2℃ |
| Instrument Power | Approximately 90mW (DC+12V power supply, backlight off, buzzer not ringing) |
| Backlight Power | Approximately 40mW |
| Accuracy (Total Error) | ±1.5%FS (instruments ≥ 1Kpa range) ±2%FS (instruments < 1Kpa range) |
| Temperature Compensation Range | -5~50℃ |
| Overload Pressure | 3 × FS |
| Burst Pressure | 5 × FS |
| Source Gas | Non-corrosive, non-ionic gases (such as air and other dry gases) |
| Charge Mode | 5V 1A power adapter or computer connection |
| Dimensions | 160 × 65 × 35mm |
| Weight | Approximately 176g |
