| Brand Name: | Bestone |
| Model Number: | FM-100V10 |
| MOQ: | 2 |
| Price: | negotiable |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union,MoneyGram |
The FM-100V10 portable flow rate meter is designed for measuring velocity and flow in open channels, featuring a Hall velocity rotation sensor for accurate polluted water flow measurement.
Ideal for hydrological stations, industrial facilities, environmental protection monitoring stations, farmland irrigation and drainage systems, and hydrogeological surveys requiring field velocity measurements in open channels.
| Measurement Formula | KN V = ------- + C(m/s) (automatic computer) T |
| Instrument Constants | K: 0.0500, C: 0.0100 |
| Speed Range | 0.01 - 10.00 m/s |
| Current Measurement Error | ≤ 1.5% |
| Display | LCD Liquid Crystal Display |
| Measurement Method | Pole Positioning Measurement |
| Temperature Range | -10°C to 50°C |
| Power Supply | 4 * 7 Batteries |
| Backlight | LED Backlight |
| Host Dimensions | 75mm * 135mm * 25mm |
| External Power Supply | 5V |

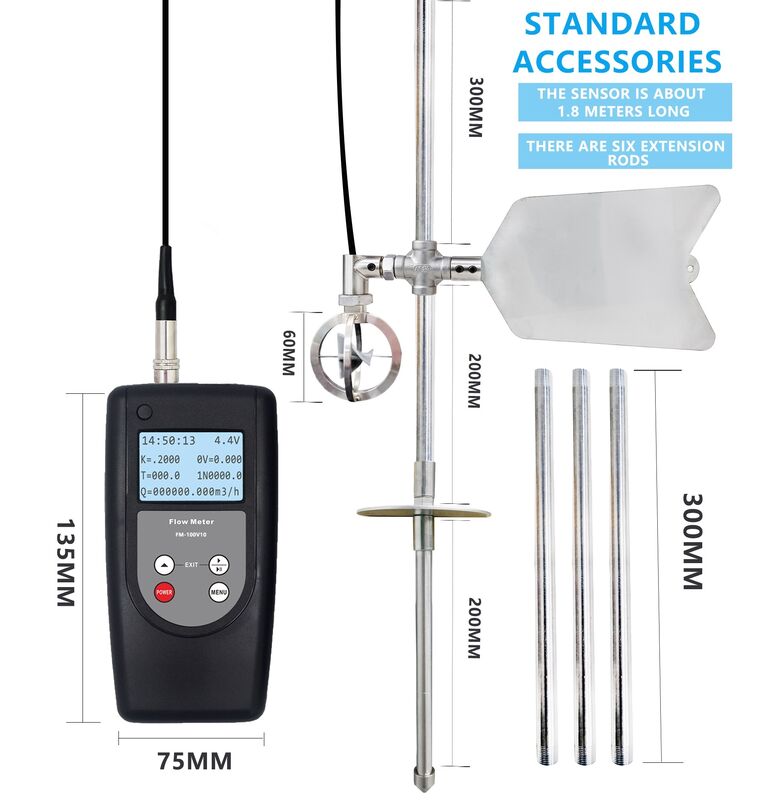

| Standard Accessories | Speedometer, probe rod paddle, signal line, packaging box with instructions, helical blade, 6 extension rods, 2 spanners |
