Sewage Environment Portable Flow Meter FM-100V5 for Automation Velocity Measurement

Name: Sewage Environment Portable Flow Meter FM-100V5 for Automation Velocity Measurement
Brand: Shenzhen Bestone Industrial Co.Ltd.
SKU: FM-100V5
Availability: InStock

Brand Name:	Bestone
Model Number:	FM-100V5
MOQ:	2
Price:	negotiable
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Catalog of Portable flow me...V5.pdf

Material:

Plastic And Metal

Color:

Black And Gray

Applications:

Can Be Tested In Sewage Environment

Used:

In Line With The National High Temperature Rotary Slurry, Is A New Type Of Portable Velocity Measurement Instrument.

Instrument:

K:0.0500, C:0.0100

Speed Range:

FM-100V5 (0.01-5.00 M/s)

Current Measurement Error:

≤1. 5%

LCD:

LIQUID Crystal Display

Measurement Method:

Pole Positioning Measurement.

Backlight:

LED Backlight

Temperature Range:

-10 ° C-50° C

Packaging Details:

plastic carrying case and white paper box

Supply Ability:

more than 100pcs per month

Highlight:

Velocity Measurement Portable Flow Meter

Sewage Environment Flow Meter

High Automation Flow Meter

Product Description

Portable Flow Meter FM-100V5

Applications

The FM-100V5 portable flow rate meter is designed for velocity measurement in open channel flow applications. Ideal for hydrological stations, industrial facilities, environmental monitoring stations, agricultural irrigation and drainage systems, and hydrogeological surveys.

Key Features

Operates effectively in sewage environments
Simple structure with lightweight, portable design
Low power consumption with comprehensive functionality
High automation level for stable, reliable performance
Compliant with national high-temperature rotary slurry standards

Technical Specifications

formula: V = ------- + C(m/s) (automatic computer)
T

Instrument Parameters	K: 0.0500, C: 0.0100
Speed Range	0.01 - 5.00 m/s
Current Measurement Error	≤ 1.5%
Display	LCD Liquid Crystal Display
Measurement Method	Pole Positioning Measurement
Temperature Range	-10°C to 50°C
Power Supply	4 × 7 Batteries
Backlight	LED Backlight
Host Dimensions	75mm × 135mm × 25mm
External Power Supply	5V

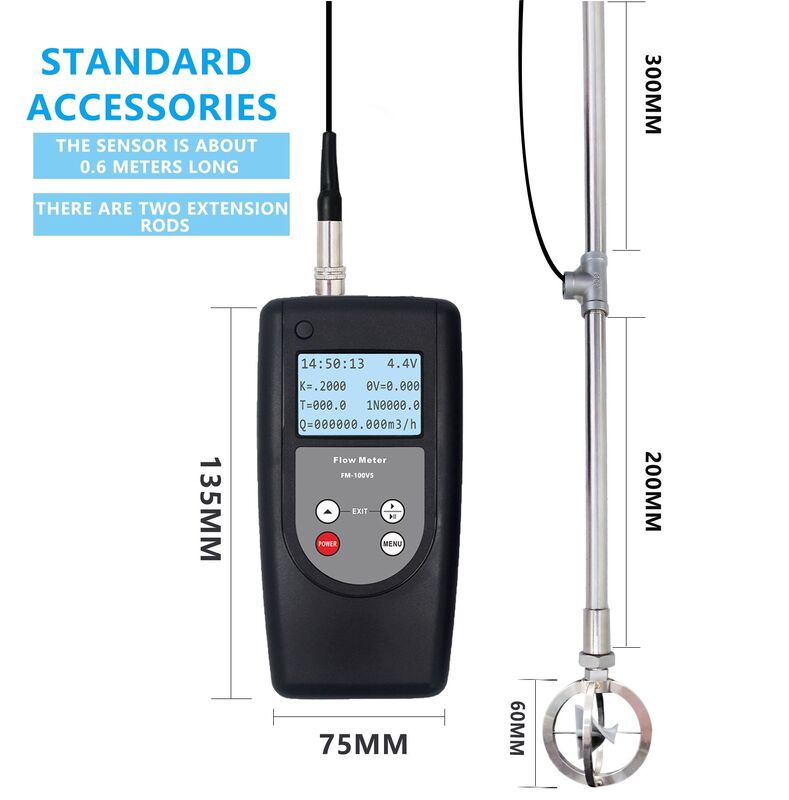

Standard Accessories	Speedometer, probe rod paddle, signal line, packaging box with instructions, 2 extension rods

Product Structure

Control Panel Layout

Product Images
