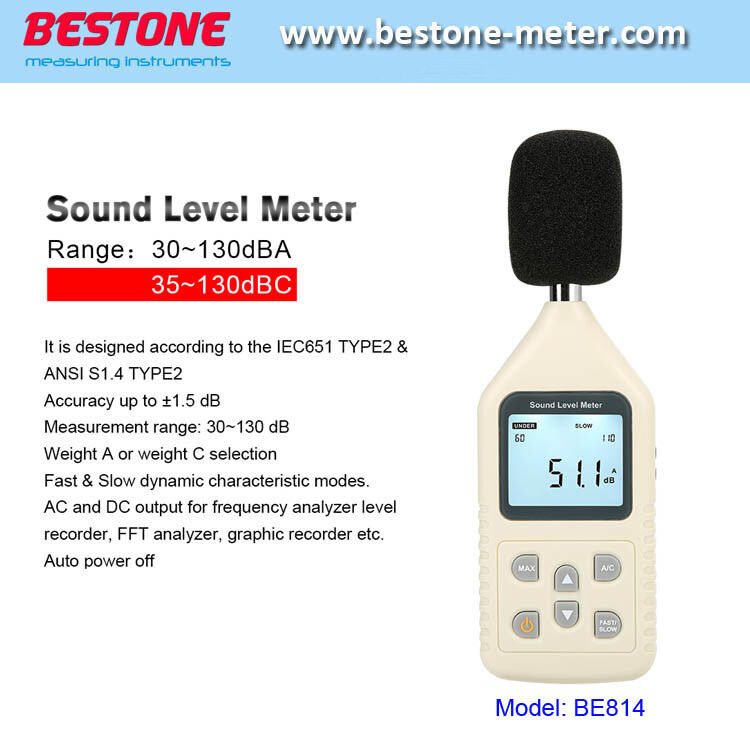

Sound Level Meter, Noise Meter, Level Measuring Instruments Noise Sound Meter Be814

MOQ:	20
Price:	18

Detail Information

Product Description

Detail Information

Model NO.:

BE814

Level Ranges 2:

50-100dB ;60-110dB ;80-130dB&Nbsp;

Accuracy:

±1.5dB

Resolution:

0.1dB

Frequency Range:

31.5Hz To 8.5kHz

Frequency Weighting:

A And C

Transport Package:

Gift Box And Carrying Case

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

HS Code:

9030409000

Production Capacity:

1000000

Product Description

Features:
* Designed according to International Electrician Committee Standard
IEC 651 TYPE 2
ANSI S1.4 TYPE 2
* Wild Measurement Range: 30-130dB
* High Accuracy: Up to Â± 1.5dB
* Windscreen/sponge ball to filter-out unwanted signals
* With Bar graph & Overload Indication (Over/Under)
* With 2 equivalent weighted sound pressure levels A and C
A frequency weighting for general sound level measurements
C frequency weighting for checking the low-frequency content of sounds
* AC & DC analogy signal output are available connecting to frequency analyzer level recorder, FFT analyzer and graphic record
* Large LCD screen with digits reading
* Fast and Slow dynamic characteristic mode
* Maximum value hold function to lock up the maximum reading
* Auto power off design for energy saving
* Dynamic sound level ranges & battery life indication
* Brand new, portable and easy to use
* Factory pre-calibrated
Specification:

Model no.	BE814
Measuring Range	30~130dBA
Measuring Range	35~130dBC
Accuracy	Â± 1.5dB
Frequency Range	31.5HZ-8.5KHZ
Linearity Range	50dB
AC/DC Output	âˆš
Auto Power Shut Off	âˆš
Low Battery Indication	âˆš
Over Range Indication	âˆš
Digit & Resolution	5Digits & 0.1dB
Time Weighting Selection	Fast/Slow
Microphone	1/2 Inch Electret Condenser Microphone
Frequency Weighting	A & C
Frequency Weighting	âˆš
Max Hold Function	âˆš
Sampling Frequency	2 times/sec
