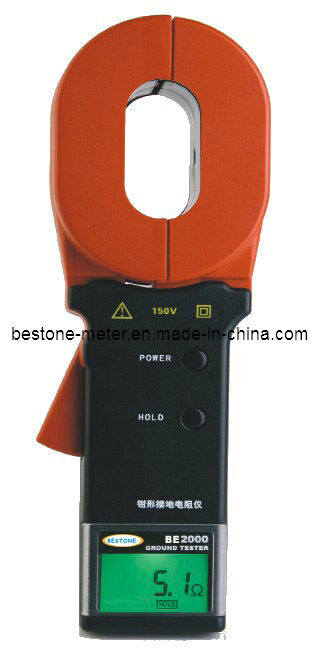

Features: * Major technical breakthrough on ground resistance test, non-contact,safe and fast * Loop resistance measurement,no need to disconnect the ground wire from rods * Resistance range:0.01~1000W * Resistance resolution: 0.001W * Current range:0.00mA~20.0A(for BE2000C) * Current resolution:0.05mA(for BE2000C) Specifications: * Resistance range: 0.01~1000W
* Resistance resolution:0.001W
* Resistance highest accuracy:±(1%+0.01W)
* Current measuring range:0.00~20.0A (only for BE2000C)
* Measured current Frequency:45~65Hz(only for BE2000C)
* Storable measurement data:30 units(only for BE2000C)
* Setting range of resistance alram critical value:1-199W(only for BE2000C)
* Setting range of current alarm value:1-499mA (only for BE2000C)
* Measurement resistance frequency:>1KHz
* Single measuring time: 1 sec.
* External electric field :<1V/m
* External magnetic field: <40A/m
* Range shift: Automatic
* Structural Feature: in the jaw way
* Protection Level: Double insulation
* Meter size: a long jaw is 285mmx85mmx56mm ;A round jaw is 260x90x66mm
* Meter weight(including batteries): 1160g for a long jaw, 1120g for a round jaw
* Size of Jaw: 65x32mm for a long jaw; f32mm for a round jaw
* LCD: 4 digital LCD,47X28.5mm
* Relative humidity: 10~90%
* Working temperature:-10~55°C
* Power source: 6V (4 pcs AA alkaline battery)
