| MOQ: | 1 |
Features:

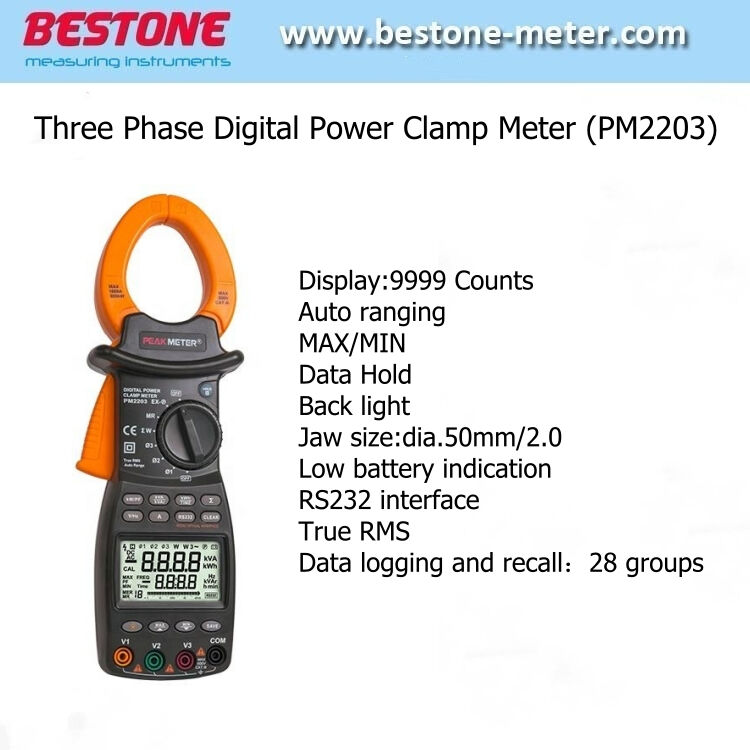

* Measuring power, voltage, current, peak value, phase, frequency, power factor, phase angle, and reaction factor, etc, of single-/three-phase circuit; Automatic phase sequence testing is possible for 3-phase measurement.
| Function | Range | Accuracy |
| AC Voltage(v) | 0.1V~600V | ±(1.2% +5) |
| AC Current(A) | 0.1A~1000A | ±(2.0% +5) |
| Active power(KW) | 0.1Kw~600kW | ±(3.0% +5) |
| Apparent Power(kVA) | 0.1kVA~600kVA | ±(3.0% +5) |
| Reactive Power(kVar) | 0.1kVAr~600kVAr | ±(4.0% +5) |
| Power factor | 0.3~1 | ±(0.02%+2) |
| Frequency | 20Hz~1000Hz | ±0.5% |
| Display | 9999 counts | |
| Jaw Opening | Φ 50mm/2.0" | |
| Auto Ranging | √ | |
| Max/Min | √ | |
| Data Logging and recall | 28 groups | |
| True RMS | True Root Mean Squre Measurement | |
| Data Hold and auto power off | √ | |
| Low battery indication | √ | |
| Display Backlight | √ | |
| RS232 Interface | √ | |
| Power supply | 4x1.5V AA Battery | |
| Product size | 300mmx96mmx50mm | |
| Product weight | 560g | |
| Safety Rating | CE CAT.III 600V RoHS | |
