Created with Pixso. Ltdk Idling Torque Meter 1.5LTDK~100LTDK With Lock Structure

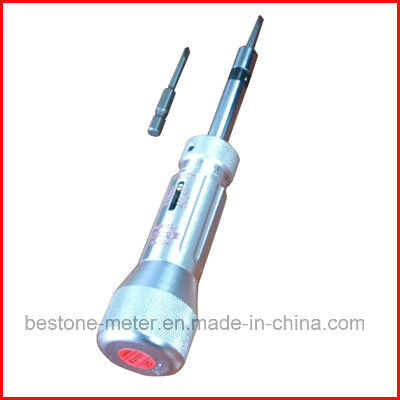

Ltdk Idling Torque Meter 1.5LTDK~100LTDK With Lock Structure

MOQ: 10
Detail Information
Model NO.:
1.5LTDK~100LTDK
Highlight:

Idling Torque Meter

,

Torque Meter 1.5LTDK

,

100LTDK Torque Meter

Product Description
Feature:

* Once reach setting value of the torsion, scale wrench will automatically disconnect clutch and happen idling, so not happen too much tighten
* By the lock structure,will lock the setted torque, therefore, it can prevent deviation in the operation.(for 6~50 LTDK)
* 1.5~~3 LTDK type with a tube clip of clamp screw head .
* After seting required torque value,whoever can use the same torque force to work.
* Each of type with a tool bit.
* With casing head and hex head of each type
* Can be used in left or right
Specification:
Type Load range(kgf.cm) Min scale Screwdirver length(mm)
1.5LTDK 0.1-0.5 0.01 96
3LTDK 0.2-3 0.02 96
6LTDK 0.5-6 0.05 110
12LTDK 1-12 0.1 160
20LTDK 2-20 0.1 160
30LTDK 2-30 0.1 160
50LTDK 5-50 0.25 200
100LTDK 10-100 0.5 235
