The measurement range of 1.20~225.00mm ,1.00~300.00mm combined with ultrasonic wave velocity measurement function of 1000~9999m/s provides accurate measurement readings.
Widely used in various precise measurements for different hardware/parts in industrial realm. One of its important applications is to monitor the level decreasing thickness during operation of various and pressure container.
Diffusely applied in manufacture fields, metal processing as well as commercial inspection and can be applied for materials that conduct and reflect constant sonic velocity.

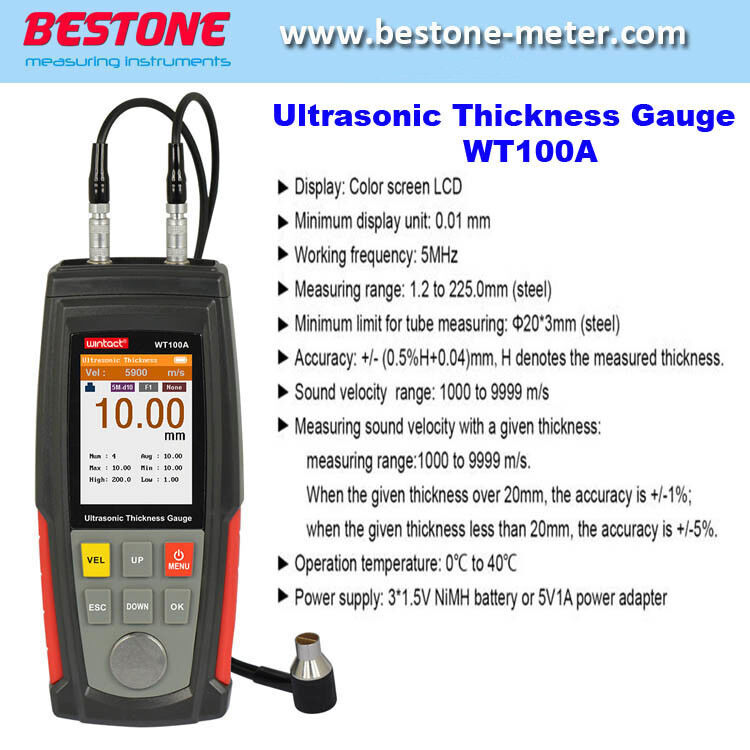

Features: * Display: Color Screen LCD * Minimum display unit: 0.01mm
* Working frequency:5MHz
* Measuring range: 1.2 to 225.0mm(steel)
* Minimum limit for tube measuring:Φ20*3mm(steel)
* Accuracy:+/-(0.5%H+0.04)mm,H denotes the measured thickness.
* Sound velocity range: 1000 to 9999m/s
* Measuring sound velocity with a given thickness:measuring range: 1000 to 9999m/s.
When the given thickness over 20mm, the accuracy is +/-1%;
When the given thickness less than 20mm, the accuracy is +/-5%.
* Operation temperature: 0ºC to 40ºC
* Power supply: 3*1.5V NiMH battery or 5V 1A power adapter
