| Brand Name: | Bestone |

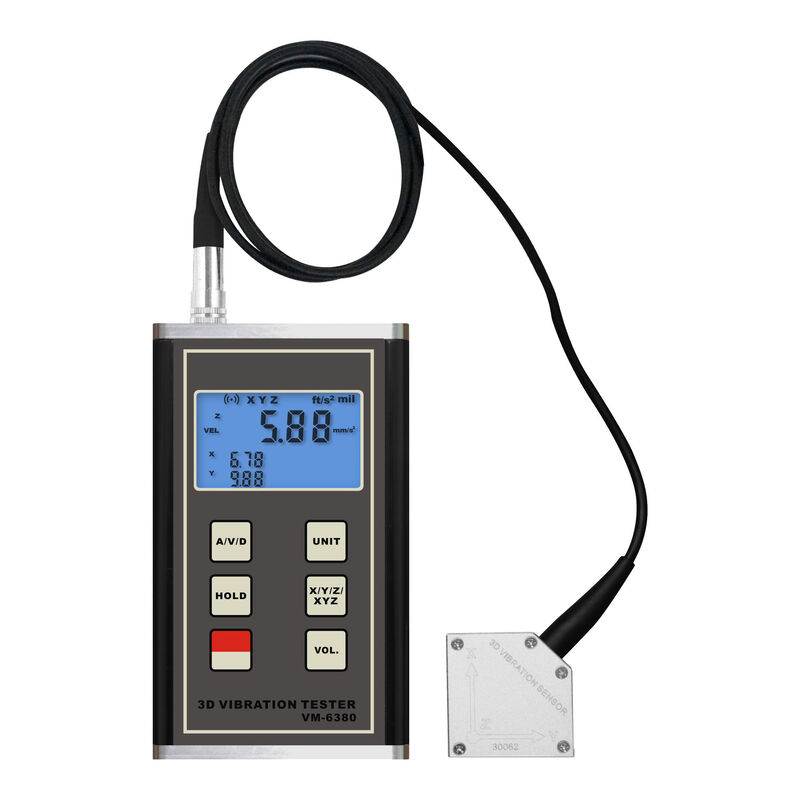

| Model Number: | VM-6380 |
| MOQ: | 2 |
| Price: | US$385 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |
| Quality Rank | Rev(rpm) | H:high of shaft(mm) | Maximum vibration velocity rms(mm/s) |
|---|---|---|---|
| Normal | 600~3600 | 80<H<132 | 1.8 |
| 132<H<225 | 2.8 | ||
| 225<H<400 | 4.5 | ||
| Good(R) | 600~1800 | 80<H<132 | 0.71 |
| 600~1800 | 132<H<225 | 1.12 | |
| 1800~3600 | 80<H<132 | 1.12 | |
| 1800~3600 | 132<H<225 | 1.8 | |
| Excellent(S) | 600~1800 | 80<H<132 | 0.45 |
| 600~1800 | 132<H<225 | 0.71 | |
| 1800~3600 | 80<H<132 | 0.71 | |
| 1800~3600 | 132<H<225 | 1.12 |
| Sensor | Piezoelectric Transducer |
| Measuring Range - Acceleration | 0.1~400m/s² (0.3~1312ft/s², 0.0~40g Equivalent Peak) |
| Measuring Range - Velocity | 0.01~400mm/s (0.004~16.0inch/s True RMS) |
| Measuring Range - Displacement | 0.001~4.0 mm (0.04~160.0 mil Equivalent Peak-peak) |
| Frequency Range - Acceleration | 10Hz~10kHz |
| Frequency Range - Velocity | 10Hz~1kHz |
| Frequency Range - Displacement | 10Hz~1kHz |
| Accuracy | 5% of Reading + 2 digits |
| Operating Temperature | 0~50ºC |
| Operating Humidity | <90%RH |
| Power Supply | 2x1.5V AA (UM-3) Battery |
| Dimensions | 137x76x32mm |
| Weight | 425g (Not Including Batteries) |
| Accessories | Diagram | Usage Situations | Usage Method |
|---|---|---|---|
| 3-Axis Piezoelectric Accelerometer | |
Three dimensional vibration parameters measurement of objects | Used with Powerful Rare Earth Magnet & Stinger Probe |
| Piezoelectric Transducer | |
General vibration parameters measurement of objects | Used with Powerful Rare Earth Magnet & Stinger Probe |
| Rare Earth Magnet | |
Magnetic objects with flat surface, roughness of less than Ra1.6, acceleration ≤ 20m/s | Connect the vibration sensor with Rare Earth Magnet using the M5 bolt included. Place the Rare Earth Magnet to the object to be tested |
| Stinger Probe (Ball / Cone) | |
Frequency is less than 1KHz and vibration energy is not small | Connect the needle to the sensor directly using probe groupware |
