| MOQ: | 12 |
| Price: | 99.9 |

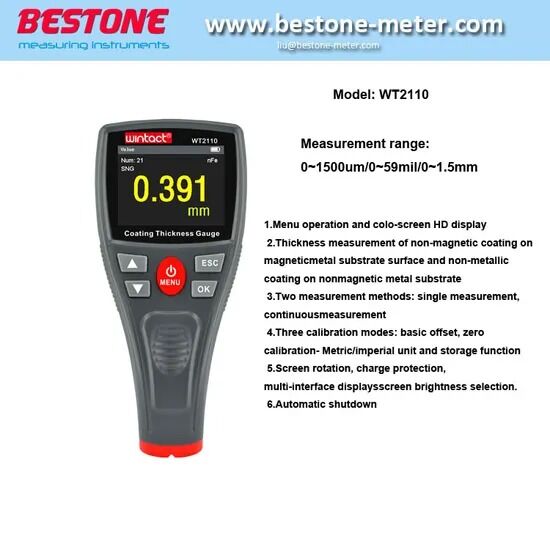

Functions:
1.Menu operation and colo-screen HD display
2.Thickness measurement of non-magnetic coating on magneticmetal substrate surface and non-metallic coating on nonmagnetic metal substrate
3.Two measurement methods: single measurement, continuousmeasurement
4.Three calibration modes: basic offset, zero calibration- Metric/imperial unit and storage function
5.Screen rotation, charge protection, multi-interface displaysscreen brightness selection.
6.Automatic shutdown
| Measurement range | 0~1500um/0~59mil/0~1.5mm |
| Resolution | ( 0.1μm(<100μm),1μm(≥100μm)) / 0.1mil/0.001mm |
| Measurement error | ≤ 150μm ±5μm |
| >150μm ±(3%H+1μm) | |
| Minimum diameter of magnetic metal substrate | 12mm |
| Minimum thickness of magnetic metal substrate | 0.5mm |
| Minimum radius of curvature for magnetic convex substrate | 2mm |
| Minimum radius of curvature for magnetic concave substrate | 11mm |
| Minimum diameter of nonmagnetic metal substrate | 50mm |
| Minimum thickness of nonmagnetic metal substrate | 0.5mm |
| Battery | 3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter |
| Size | 70.30*38.6*149.59mm |
| Weight | 136.9(including battery) |
