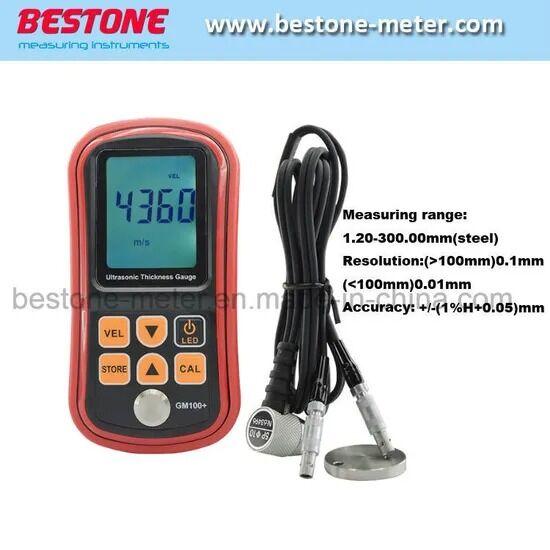

Ultrasonic Thickness Meter / Plastic Thickness Gauge GM100+

MOQ:	12
Price:	59.9

Detail Information

Product Description

Detail Information

Model NO.:

GM100+

Measuring Range 1:

1.2-300.0mm(Steel)

Auto Linear Compensation:

This Advanced Software Program Enhances The Preci

LCD Digital Display:

4 Digits

Frequency:

5MHz

Operation Temperature:

0-45

Transport Package:

Box And Carrying Case

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

HS Code:

9031809090

Production Capacity:

500000pieces/Year

Product Description

The measurement range of 1.20~300.00mm combined with ultrasonic wave velocity measurement function of 1000~9999m/s provides accurate measurement readings.
Widely used in various precise measurements for different hardware/parts in industrial realm. One of its important applications is to monitor the level decreasing thickness during operation of various and pressure container.
Diffusely applied in manufacture fields, metal processing as well as commercial inspection and can be applied for materials that conduct and reflect constant sonic velocity.

Features:

* Auto Calibration to assure the accuracy
* Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
* Use "up"and "down" keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
* Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
* 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
* Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the
* further conversion or consultation of the table
* 12 sound velocity for different material which also adjustable
* Low battery indication
* Auto power off mode designed to conserve battery life
* More than 10000 times long life keys
* The unit has a special memory that retains all of its setting even when the power is off

Specification:

Measuring Range	1.20~300.00mm(Steel)
Accuracy	Â±(1%H+0.05)mm
Resolution	(>100mm)0.1mm,(<100mm)0.01mm
Sound Velocity range	1000~9999m/s
Frequency	5MHz
Operation temperature	0ÂºC ~45ÂºC
Sensor operation temperature	Normal:0~60ÂºC ,High tem.:0~250ÂºC
Minimum limit for tube measuring	Î¦10mm probe:Î¦20*3mm(steel)
power	1.5VAAA*3 Batteries
