products details

Home Products

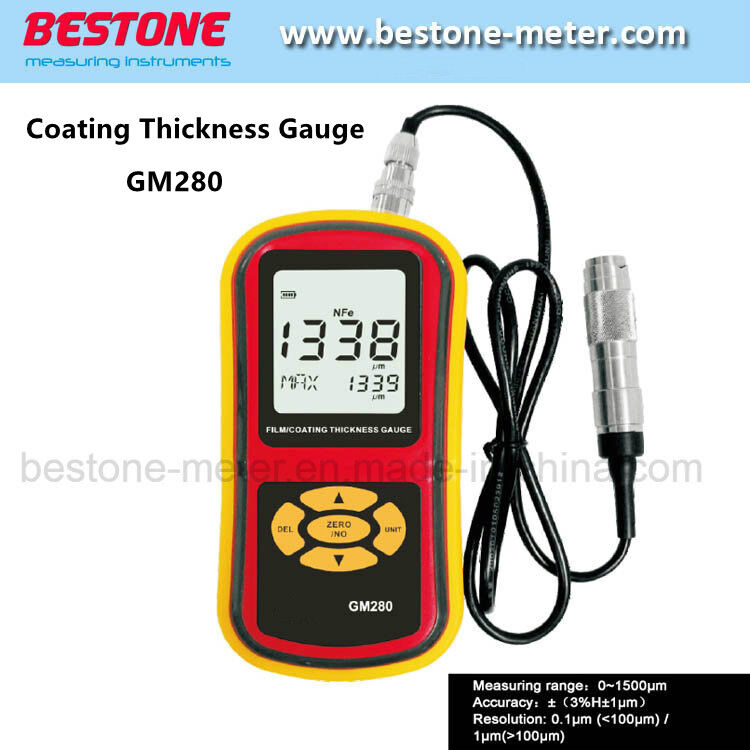

Film/Coating Thickness Gauge Paint Coating Thickness Meters GM280

MOQ:	2
Price:	155

Detail Information

Product Description

Detail Information

Model NO.:

GM280

Operating Principle:

Eddy Current (NF)

Measuring Range:

0~1500µm

Accuracy:

±(3%H±1µm)

Resolution:

0.1µm (<100µm)1µm(>100µm)

Dimension:

80*38*150mm

Transport Package:

Carrying Case And Color Box

Specification:

20cmx13cmx7cm, 0.5kgs, Plastic

Trademark:

BESTONE, BENETECH

Origin:

China

Product Description

The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings,powder applied to aluminum, brass and non-magnetic stainless steel etc.Use it anywhere -- Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions

Coating thickness gauge is a kind of portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engineering field, laboratories, but also meet the demand of multiple measuring by using different probes. It is used widely in manufacturing, metal processing industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.

Features:

* Separate Type, measurements can be more flexibility.
* Measuring mode: Single, Continually and Difference
* Data store/ Data recall/ Data delete function
* Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
* Beep sound indication
* Measure in Metric/Imperial
* LCD backlight display
* Low battery indication
* Auto power off

Specifications:

* Operating Principle:Eddy Current (NF)
* Measuring range:0~1500Âµm
* Accuracy:Â±(3%HÂ±1Âµm)
* Resolution: 0.1Âµm (<100Âµm) or 1Âµm(>100Âµm)
* Use Hi-sensibility sensor for precise measurement
* Zero point, two point and basic, three different calibration
* Measuring mode: Single, Continually and Difference
* Data store/ Data recall/ Data delete function
* Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
* Beep sound indication
* Measure in Metric/Imperial
* LCD backlight display
* Low battery indication
* Auto power off
* Packing method: Gift box + Carrying case
* Power supply: 3*1.5V AAA battery
* Weight: 250g (without battery)
* Dimension: 80*38*150mm

Standard Accessories:
* NF probe x 1pc
* Aluminum Substrate Block x 1pc
* Calibrations foils x 6pcs
* User's manual x 1pc
* Carrying case and gift box x 1 set
* 1.5V battery x 3pcs(for air shipping, no included)

Product Specifications
Measurement ranges		0~1500Î¼m
Resolution		0.1Î¼m/1Î¼m
Accuracy		Â±(3%H+1Î¼m)
LCD display		3 1 / 2 display
Power supply		3*1.5V AAA alkaline battery
Operation current		About 10mA
Battery life		Continuously 20 hour .
Auto power off		80 seconds
LCD backlight function		15 second.
Operation temperature		0~40ÂºC
Operation humidity.		10~95% RH
Low battery indication		3.0V Â± 0.2V
Product size		72 x 35x 145mm
Weight		216.5G (without battery)

Model	GM220	GM280	GM280F
Measurement ranges	0-1800Î¼m	0-1500Î¼m	0-1800Î¼m
Resolution	0.1um/1Î¼m	0.1um/1Î¼m	0.1um/1Î¼m
Operation temperature	0~40ÂºC	0~40ÂºC	0~40ÂºC
Operation humidity	10-95%RH	10-95%RH	10-95%RH
Overall dimensions	6730175mm	7235145mm	7235145mm
Weight	133g	216.5g	246.1g
