| ชื่อแบรนด์: | Bestone |
| หมายเลขรุ่น: | 86135 |
| ขั้นต่ำ: | 1 |
| เวลาการส่งมอบ: | 5-8 วันทำการ |
| เงื่อนไขการชำระเงิน: | ที/ที |

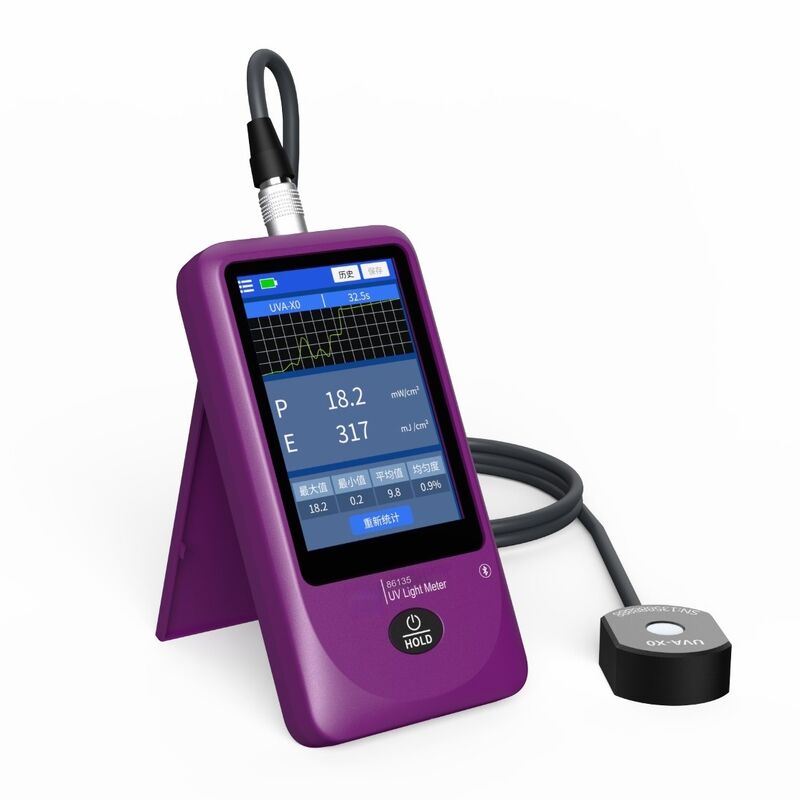

The 86135 UV irradiance meter consists of a main unit and digital probes. The main unit is equipped with a 3.5-inch large touchscreen for easy and intuitive operation. Based on various testing requirements (such as UV spectrum range, application fields, measuring range, aperture size, etc.), 12 different UV probes are available and can be freely paired for use.
UV Sterilization Probe Series
| Model | UVC-X0 Probe | UVCWP-X1 Probe | UVC LED-X0 Probe | UVC-X2 Probe |
|---|---|---|---|---|
| Application | 254nm UV Sterilization Mercury Lamp Measurement | 254nm UV Sterilization Mercury Lamp Measurement, 1m Waterproof | Wide Spectrum, 260nm-285nm LED Sterilization Lamp Measurement | 222nm UV Sterilization Lamp Measurement |
| Spectral Response | 230nm-280nm, λp=254nm | 230nm-315nm | 210nm-250nm, λp=222nm | 210nm-250nm, λp=222nm |
| Probe Size | Diameter 39mm × Thickness 15mm | Diameter 50mm × Thickness 20mm | Diameter 39mm × Thickness 15mm | Diameter 39mm × Thickness 15mm |
| Test Aperture Diameter | Φ 10mm | Φ 10mm | Φ 10mm | Φ 10mm |
| Power Measurement Range | 0-200000μW/cm² | 0-200000μW/cm² | 0-200000μW/cm² | 0-200000μW/cm² |
| Model | UVA-X0 Probe | UVA LED-X0 Probe | UVA LED-X1 Probe |
|---|---|---|---|
| Application | UV Curing, High-Pressure Mercury Lamp Measurement | UV Curing, UV LED Area Light Source Measurement | UV Curing, UV LED Point Light Source Measurement |
| Spectral Response | 315nm-400nm, λp=365nm | 340nm-420nm, calibrated to 395nm LED light source | 340nm-420nm, calibrated to 395nm LED light source |
| Probe Size | 39mm × 32mm × 15mm | 39mm × 32mm × 15mm | 39mm × 32mm × 15mm |
| Test Aperture Diameter | Φ 10mm | Φ 10mm | Φ 1mm |
| Power Measurement Range | 0-2000mW/cm² | 0-200000mW/cm² | 0-200000mW/cm² |
| Model | BL-X0 Probe | UVB-X0 Probe | UVA-X2 Probe | UVA-X1 Probe | UVA LED-X3 Probe |
|---|---|---|---|---|---|
| Application | 450nm Blue Light Measurement | UVB Light Source Measurement | 340nm Aging Lamp Measurement | Low-Range Universal UVA Light Source Measurement | Low-Range Universal UVA+UVV LED Light Source Measurement |
| Spectral Response | 410nm-490nm, λp=450nm | 280nm-315nm, λp=310nm | 315nm-365nm, λp=340nm | 315nm-400nm, λp=365nm | 340nm-420nm, calibrated to 395nm LED light source |
| Power Measurement Range | 0-2000mW/cm² | 0-200000μW/cm² | 0-200000μW/cm² | 0-200000μW/cm² | 0-200000μW/cm² |
Probe Pairing Recommendations
| Application | Suggested Probe |
|---|---|
| Detect UV Aging Box | UVB-X0, UVA-X2 |
| Detect Ambient Light and Sunlight | UVA-X1, UVB-X0 |
| Detect Welding Arc | UVA-X1, UVB-X0, UVC-X0 |
| Detect UV Nail Lamp and 3D printing curing lamp | UVALED-X3 |
| Detect Plant Growth Lamp or Reptile Lamp | UVB-X0 |
| Detecting the 222nm Far UVC Lamps | UVC-X2 |
| Detecting the Medical Phototherapy Devices or LED Blue Therapy Light | BL-X0 |
| Detecting medical germicidal mercury lamps | UVC-X0 |
| Detecting medical germicidal LED lamps | UVCLED-X0 |
