| Brand Name: | Bestone |
| Model Number: | 86226 |
| MOQ: | 5 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

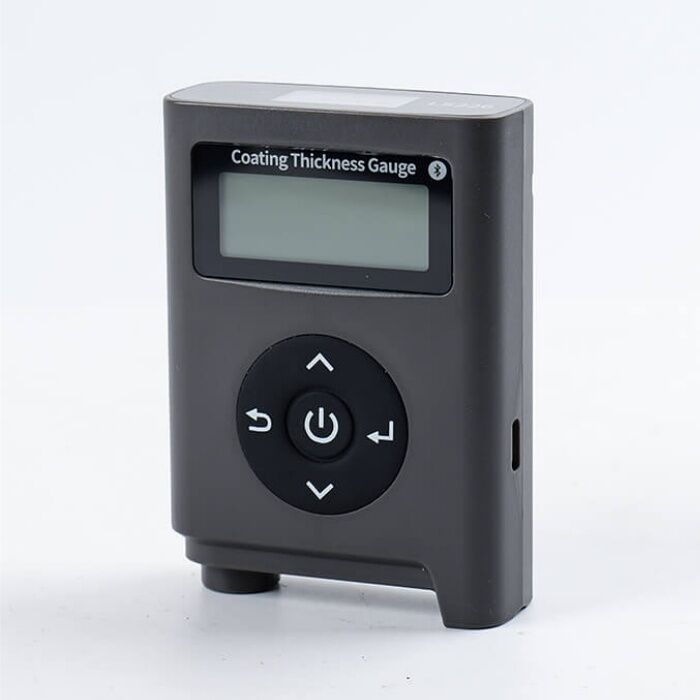

The 86226 coating thickness gauge offers versatile measurement capabilities for various industrial applications. It can measure non-magnetic coatings such as paint, varnish, enamel, chrome, and galvanizing on ferromagnetic metal substrates like steel or iron. Additionally, it measures non-conductive coatings including paint, anodized layers, or ceramic on non-magnetic metal substrates such as copper, aluminum, die cast zinc, and brass.
The gauge automatically identifies the substrate and switches measurement modes accordingly. It is widely used in manufacturing, metal processing, chemical industry, commodity inspection, and other industrial fields.
| Parameter Name | Parameter Value |
|---|---|
| Probe tip | Cemented carbide |
| Measuring principle | Fe: Magnetic induction NFe: Eddy current |
| Probe type | Integrated probe |
| Measuring range | 0.0-2000 μm |
| Resolution | 0.1 μm:(0μm - 99.9μm) 1μm:(100μm - 2000μm) |
| Accuracy | 0-1000 μm: ≤±(2%H+1μm), H is the standard value 1000-2000μm: ≤±3%H, H is the standard value |
| Unit | μ m / mil |
| Measuring interval | 0.3s |
| Minimum measuring area | Ø = 15mm |
| Minimum substrate thickness | Fe:0.2mm NFe:0.05mm |
| Display | 128 *48 dot matrix LCD |
| Power supply | 2pcs of 1.5V AA alkaline battery |
| Range of operation temperature | 0℃-50℃ |
| Storage temperature range | -20℃-60℃ |
| Host size | 90*65*28 mm |
| Weight (with battery) | 123g |
| Supply Voltage | DC3V |
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Coating Thickness Gauge | 1 | Set |
| 2 | Fe zero-adjustment plate | 1 | pcs |
| 3 | NFe zero-adjustment plate | 1 | pcs |
| 4 | Standard film | 5 | pcs |
| 5 | User manual | 1 | p |
