| Brand Name: | Bestone |
| Model Number: | 86256 |
| MOQ: | 5 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Parameter Name | Parameter Value |
|---|---|
| Hardness Scales | HV, HRC, HRB, HRA, HS, HL, HB, Rockwell Hardness E, HRF |
| Measurement Range | HV(50-1700), HL(170-960), HRC(20-70), HRB(13-100), HRA(60-85.8), HS(26.4-99.5), HB(30-651), Rockwell Hardness E(20-70), HRF(60-100) |
| Resolution | 1HV, 0.1HRC |
| Accuracy | ±4%H+10HV, ±2.5HRC (Probe fixture stand test, H as the standard value) |
| Repeatability | 3%H+8HV, 2HRC (Probe fixture stand test, H as the standard value) |
| Test Force | 20N |
| Display | 240 × 240 dot matrix IPS |
| Power Supply | Rechargeable lithium battery 3.7V@1000mAh, full charge for over 5000 continuous measurements |
| Charging Port | USB (Type-C) |
| Size | 185 × 43 × 45 mm |
| Weight | 245 g |
| Working Temperature Range | -10~50℃, 0~85%RH (no condensation) |
| Storage Temperature Range | -10~60℃, 0~85%RH (no condensation) |
| Supply Voltage | DC5V |
| Operating Current | 60mA |
| No. | Product Name | Quantity | Unit |
|---|---|---|---|

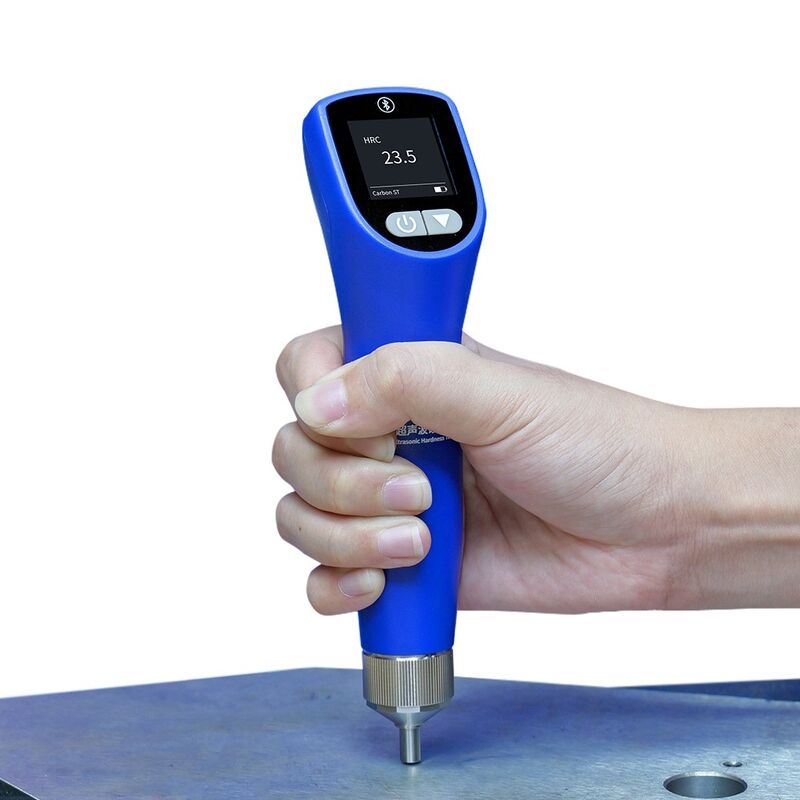

| 1 | Ultrasonic Hardness Tester | 1 | Set |
| 2 | USB Data Cable | 1 | pcs |
| 3 | Standard Hardness Block | 1 | pcs |
| 4 | User Manual | 1 | pcs |
| 5 | Calibration Report | 1 | pcs |
