| Brand Name: | Bestone |
| Model Number: | 86331 |
| MOQ: | 5 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

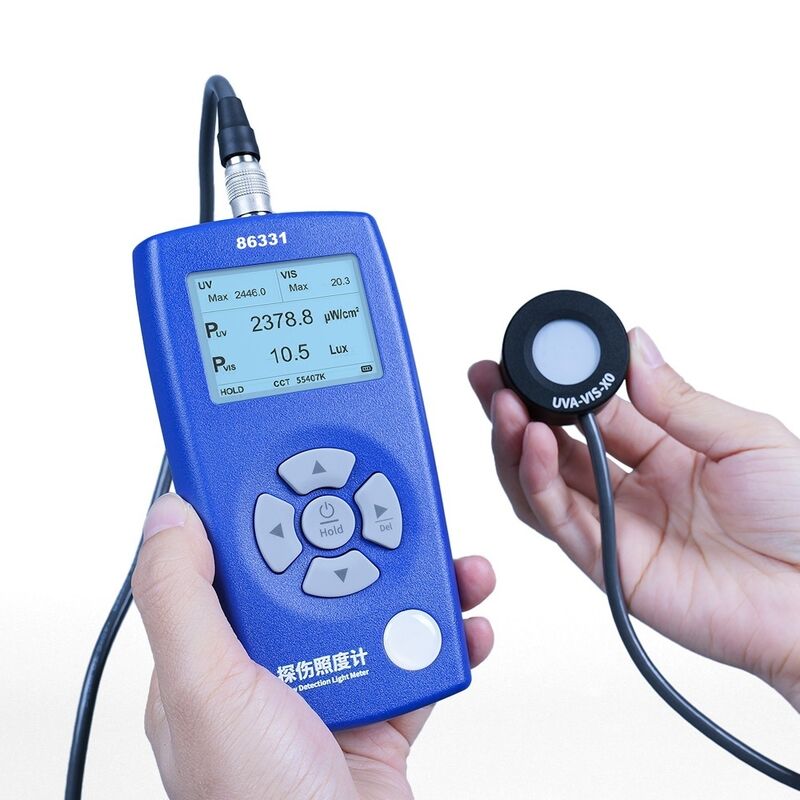

The 86331 is a multifunctional flaw detection light meter specifically designed for non-destructive testing (NDT). Equipped with a high-precision UV filter and professional UV detector, this instrument simultaneously measures UV power, visible light illuminance, and correlated color temperature (CCT). It meets standards for non-destructive testing, penetrant testing, and magnetic particle testing.
| Parameter | Value |
|---|---|
| UV spectral response | 315nm-405nm, λp = 365nm |
| UV power measurement range | 0 - 200,000 μW/cm² |
| UV power resolution | 0.1 μW/cm² |
| UV power measurement accuracy | H <50μW/cm²: ±5μW/cm², H>=50μW/cm²: ±10%H (H is standard value) |
| UV unit options | μW/cm² (default), mW/cm², W/m² |
| Illuminance measurement range | 0 - 1,000,000 Lx |
| Illuminance resolution | 0.1 Lx |
| Illuminance measurement accuracy | ≤ ±(3%H+2Lx) (H is standard value, calibrated under CIE standard A light source) |
| Illuminance unit options | Lx (default), FC |
| Correlated color temperature measurement range | 1,000 - 100,000 K |
| Response time | < 0.7s |
| Test aperture diameter | Φ 21mm |
| Size | 188.5mm * 75.2mm * 30.3mm (L*W*H) |
| Weight | Approximately 232g (including batteries) |
| Display | 240*160 dot matrix LCD |
| Power supply | 2 AA alkaline dry batteries |
| Operating environment | Temperature 0~40℃, Humidity <85%RH |
| Supply voltage | DC 3V |
| Operating current | 20mA |
| Operating power consumption | 60mW |
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | Flaw Detection Light Meter with probe | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Calibration Report | 1 | pcs |
