| Brand Name: | Bestone |
| Model Number: | 86138 |
| MOQ: | 1 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

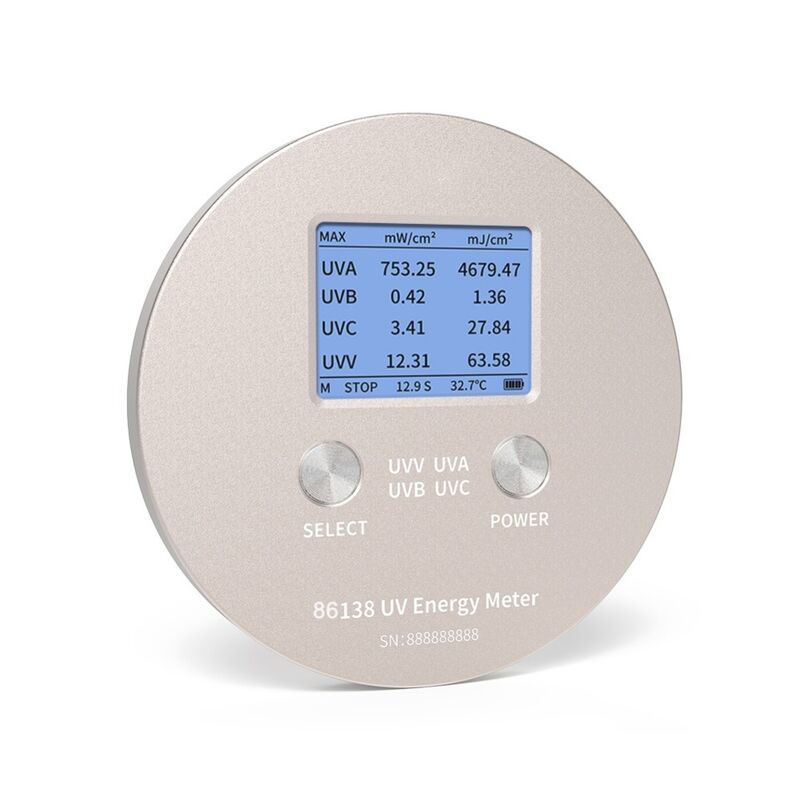

The UV energy meter simultaneously measures UV energy, intensity, temperature, and irradiation duration across four bands (UVA/UVB/UVC/UVV). It's suitable for UV intensity testing in applications such as curing machines, dryers, coating machines, exposure units, and printing equipment. It also supports detection for UV energy, intensity, and temperature in light sources like mercury, halogen, gallium, iron, and xenon lamps.
| Parameter | Value |
|---|---|
| Spectral Range | UVC: 230nm-280nm λp = 254nm UVB: 280nm-315nm λp = 310nm UVA: 315nm-400nm λp = 365nm UVV: 395nm-445nm λp = 420nm |
| Power Measuring Range | 0 - 2000 mW/cm² |
| Power Resolution | 0.01 mW/cm² |
| Energy Measuring Range | 0 - 999999 mJ/cm² |
| Measuring Accuracy | H <5mW/cm²: ±0.5mW/cm² H≥5mW/cm²: ±10%H, ±5% (typical) |
| Temperature Measuring Range | -55°C - +125°C |
| Sampling Speed | 2048 times/second |
| Power Data Storage Interval | 32 times/second |
| Temperature Data Storage Interval | 2 times/second |
| Recording Period | 32 min |
| Power Supply | 2 AAA alkaline dry batteries |
| Display | Dot matrix LCD |
| Dimension | Diameter 120mm × thickness 13mm |
| Weight | 225g |
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | Anti-static Gloves | 1 | pcs |
| 4 | Small Cross Screwdriver | 1 | pcs |
| 5 | User Manual | 1 | pcs |
| 6 | Calibration Report | 1 | pcs |
| 7 | Certificate/Warranty Card | 1 | pcs |
| 8 | Plastic Case | 1 | pcs |
