| Brand Name: | Bestone |
| Model Number: | AE7700 |
| MOQ: | 10 |
| Price: | negotiable |
| Delivery Time: | 5-8 workings |
| Payment Terms: | T/T,Western Union,MoneyGram |
Configurable settings based on carbon dioxide concentration levels
Supports power supply on/off control functionality
Compliant with national standards, US, and European regulations (optional configurations available)
Customizable cable length options
Wide application range including greenhouses, flower cultivation, plant nurseries, and hospitals
| Parameter | Specification |
|---|---|
| CO2 Measurement Range | 0~9999ppm |
| CO2 Resolution | 1ppm |
| CO2 Accuracy | ±50ppm or ±5% of reading (whichever is greater) |
| CO2 Repeatability | 10ppm |
| Temperature Dependence | ±0.1% of the reading or ±2ppm each °C (whichever is greater), at 25°C |
| Pressure Dependence | Yes |
| Response Time | <1 minute |
| Boot Time | <20 seconds |
| Temperature measuring range | 0~50°C (32°F~122°F) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy | ±0.5°C (±1°F) |
| Temperature Response Time | <10 minutes |
| Relative Humidity Range | 0~99% RH |
| RH Accuracy | ±3% |
| RH Resolution | 0.1% RH |
| Operating temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Operating & Storage RH | 0~99% RH |
| Input voltage | AC 100-300V |
| Output Load | 10A @ 250VAC |
| Component | Dimensions |
|---|---|
| Control Unit | 164 × 147 × 47mm |
| Sensor Unit | 63 × 99 × 28mm |
| Weight | 1080g |

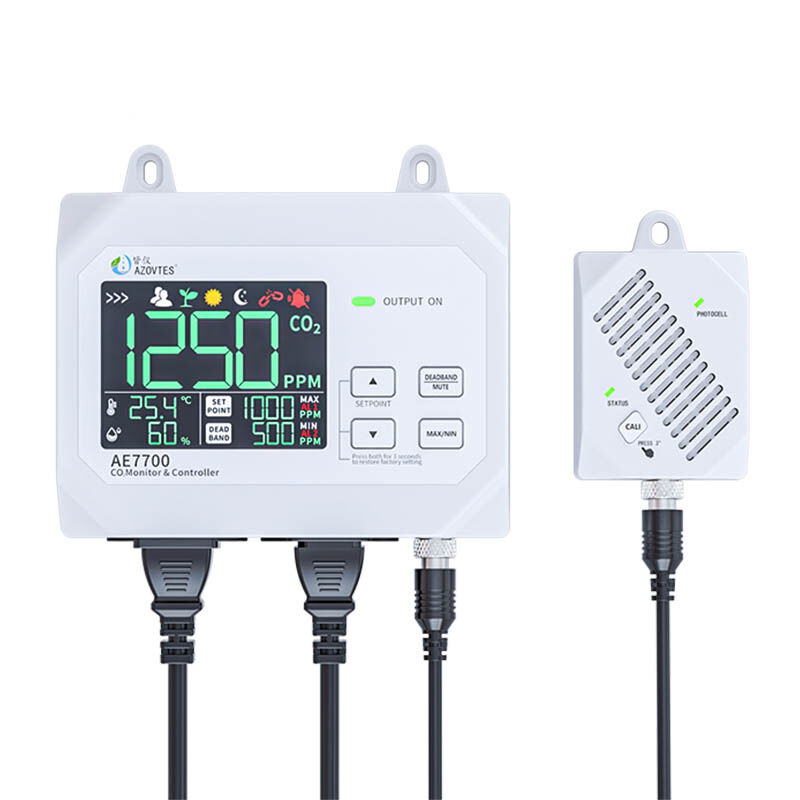

Controller Unit
Sensor Unit
Cable (4.6m) × 1
Output and input power cables (1.5m) × 2
Hook
Instruction manual
Screws and expansion pipes
Carton packaging
