| MOQ: | 1 |
| Price: | 2581 |
* Ultra-high repeatability accuracy:dE*ab≤0.02
* Excellent inter-stage consistency:dE*ab≤0.25
* The calibration base and zirconium reference with Mohs hardness of 9 are used to calibrate the instrument, which ensures the long-term stability of the instrument.
* More than 30 measurement parameters and nearly 40 evaluation light sources are available for selection * APPSupport WeChat applet, Android, Apple, and Hongmeng mobile app
* The DS-700D supports 8 measurement calibers to choose from In order to facilitate the measurement of samples of different sizes by users, the DS700D spectrophotometer supports 8 calibers for customers to use, stable: Φ 11mm+ Φ 6mm+ Φ 3mm+ Φ 1 * 3mm, dexterous type: ▽ 11mm+▽ 6mm+▽ 3mm+▽ 1 * 3mm, which can be flexibly applied to various use and test conditions.
* Built-in high-definition camera for clear observation of the tested area The DS-700D spectrophotometer can obtain images of the tested area through the camera during measurement, which can clearly locate the tested area of the sample to avoid inaccurate measurement due to regional errors.
* APPSupport WeChat applet, Android, Apple, and Hongmeng mobile app
* Use powerful PC color management system ColorExpert*

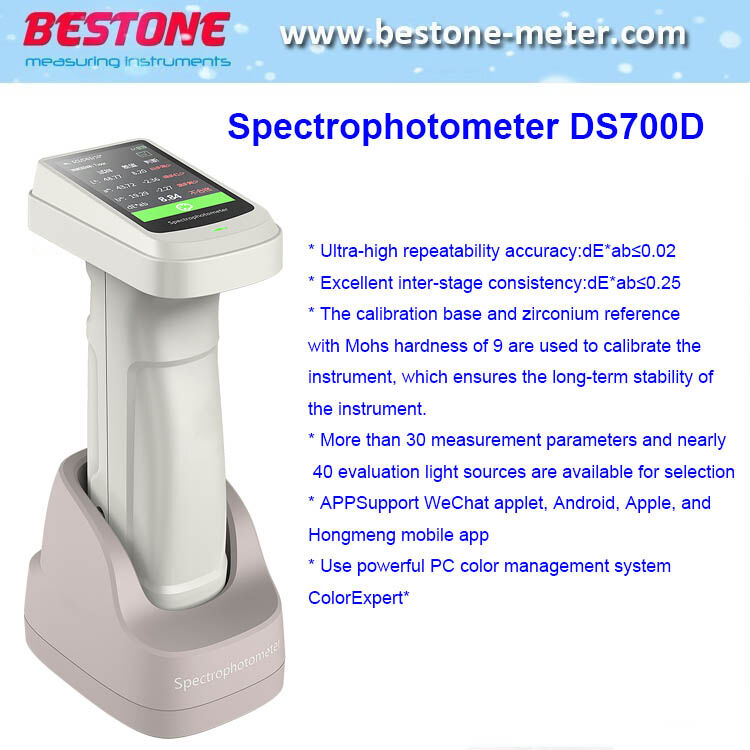

| Name | Spectrophotometer DS-700D |
| Geometry* | D/8,SCI+SCE |
| Repeatability** | dE*ab≤0.02 |
| Inter-Instrument Agreement*** | dE*ab≤0.25 |
| Display Resolution | 0.01 |
| Measuring aperture | 8 stable and smart:Φ11mm,Φ6mm,Φ3mm,1*3mm ▽11mm,▽6mm,▽3mm,▽1*3mm |
| Measurement index | Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, chromatic aberration(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),Blackness(My,dM),Color fastness,Staining fastness,Tint(ASTM E313-00),Color densityCMYK(A,T,E,M),Metamerism indexMilm,Munsell,covering power,Force share(Color Strength) |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
| Light Source | Full-band balanced LED light source+UV |
| Measurement and observation mode | Camera |
| Calibration | Intelligent automatic calibration |
| Software support | Andriod,iOS,Windows,WeChat applet |
| Accuracy | Metrology Level I |
| Observer Angles | 2°,10° |
| Sphere Size | 40mm |
| Standards | CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Spectroscopic method | Raster |
| Sensor | Dual row high precision CMOS array sensor |
| Wavelength interval | 10nm |
| Wavelength range | 400-700nm |
| Reflectance Range | 0-200% |
| Reflectivity resolution | 0.01% |
| Measurement time | About 1 seconds |
| Interface | USB,Bluetooth |
| Screen | Full color screen,3.5 inches |
| Battery capacity | Rechargeable, 8000 times continuous tests, 7.2V/3000mAh |
| Light source Lifetime | 10 years, 1 million tests |
| Language | Chinese, English |
| Storage | Instrument: 100 standard samples and 10000 samples; APP: mass storage |
