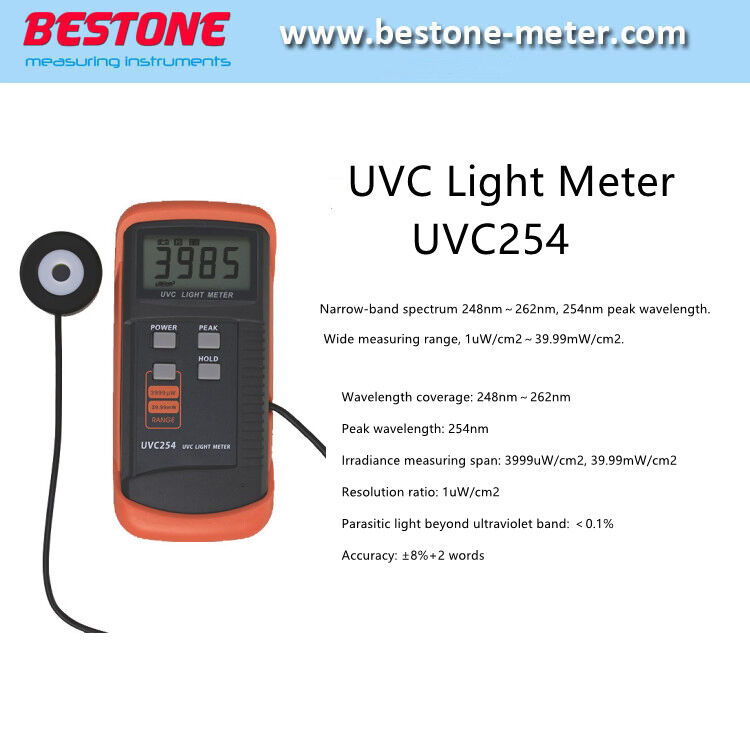

UVC Light Meter UV Radiometer UV Meter UVC254

MOQ: 2
Price: 330
Detail Information
Model NO.:
UVC254
Peak Wavelength:
254nm
Irradiance Measuring Span:
3999uw/Cm2, 39.99MW/Cm2
Resolution Ratio:
1uw/Cm2
Accuracy:
±8%+2 Words
Transport Package:
Carrying Case
Specification:
CE, ROHS
Trademark:
BESTONE
Origin:
China
Product Description
Features:
1. Professional and quality UVC radiometer
2. Narrow-band spectrum248nm~262nm, 254nm peak wavelength
3. Large scale integrated circuit ensures high precision and stability
4. UV probe comprises of isolate visible light window, narrow-band optical filter and gallium arsenide sensor.
5. Shell of aluminium alloy probe is equipped with fixed screw holes, which is convenient for the probe to be installed in a suitable position for measurement.
6. Wide measuring range, 1uW/cm2~39.99mW/cm2

Specifications:

Wavelength coverage: 248nm~262nm

Peak wavelength: 254nm

Irradiance measuring span: 3999uW/cm2, 39.99mW/cm2

Resolution ratio: 1uW/cm2

Parasitic light beyond ultraviolet band: <0.1%

Accuracy: ±8%+2 words

Sampling rate: 2 times per second

Operating environment: Temperature 0ºC to 40ºC (32ºF-104ºF) Humidity 0~80%Rh

Overload display: "OL"

Weight: 350 g (Battery, probe included)

Power supply: DC 9V (6F22 type) battery

Operating current: about 2.7mA

Dimension: body 160x78x43mm
Sensor φ40x35mm
