Optical Meters
Created with Pixso. UV Power Meter, UV Solar Power Meter Sm206-UV

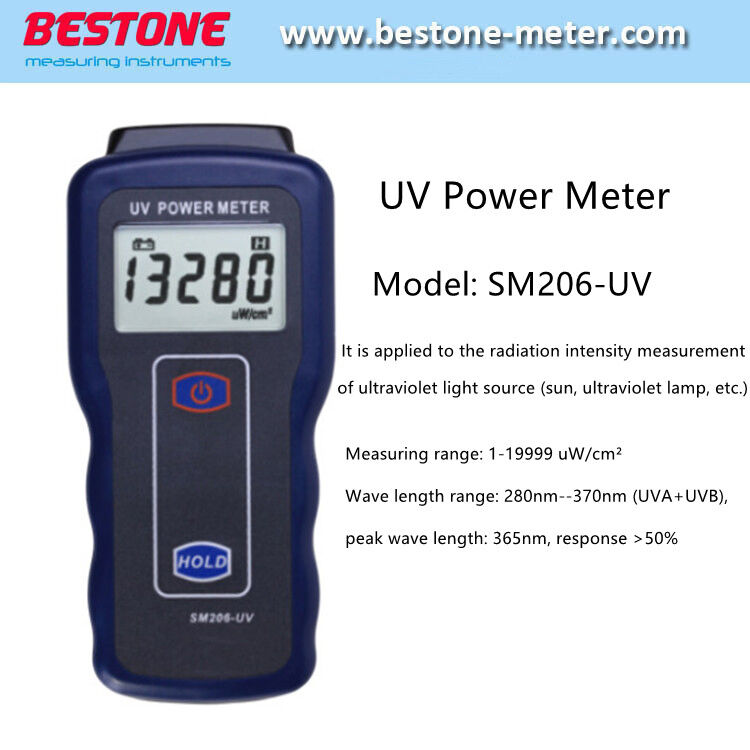

UV Power Meter, UV Solar Power Meter Sm206-UV

MOQ: 2
Price: 66.5
Detail Information
Model NO.:
SM206-UV
Resolution:
1W/M²
Error Range:
± (10%R+2dgts) R:Readings
Temperature Error:
±0.38uw/Cm² / ºC
Over Load:
“ol”
Transport Package:
Carrying Case
Specification:
CE, ROHS
Trademark:
BESTONE
Origin:
China
HS Code:
9031499090
Production Capacity:
500000pieces/Year
Product Description
This instrument is a precision instrument for measuring the intensity of solar ultraviolet radiation. It is applied to the radiation intensity measurement of ultraviolet light source (sun, ultraviolet lamp, etc.), the barrier performance test of building film, solar film, heat insulating glass, etc., the energy test of pet UVB lamp, home disinfection lamps, animal germicidal lamps, etc.
Feature:
1. Broadband UV detector, with balanced response to both UVA and UVB
2. 4 1/2 digital display
3. Data retention function
4. Wide measure range without adjustment

Specification:

Resolution: 1uW/cm²

Error range: ± (10%R+2dgts) R:readings

Temperature error: ±0.38uW/cm² / ºC deviation at 25ºC

Display: 4 1/2 LCD display, maximum displayed numerical value 19999,

over load "OL"

Drift: <±1.5% /year

Measuring range: 1-19999 uW/cm²

Wave length range: 280nm--370nm (UVA+UVB),

peak wave length: 365nm, response >50%

Sampling time: 2.5 times/s

Operation temperature and humidity: 0°C to 40°C <80%RH

Storage temperature and humidity: -10°C to 50°C <70%RH

Dimensions and weight: 132(L) x 60(W) x 38 (H)mm

Weight: approx. 150g

Battery : 6F22 alkaline 9V battery

Battery operation life: Approx. 100 hours
