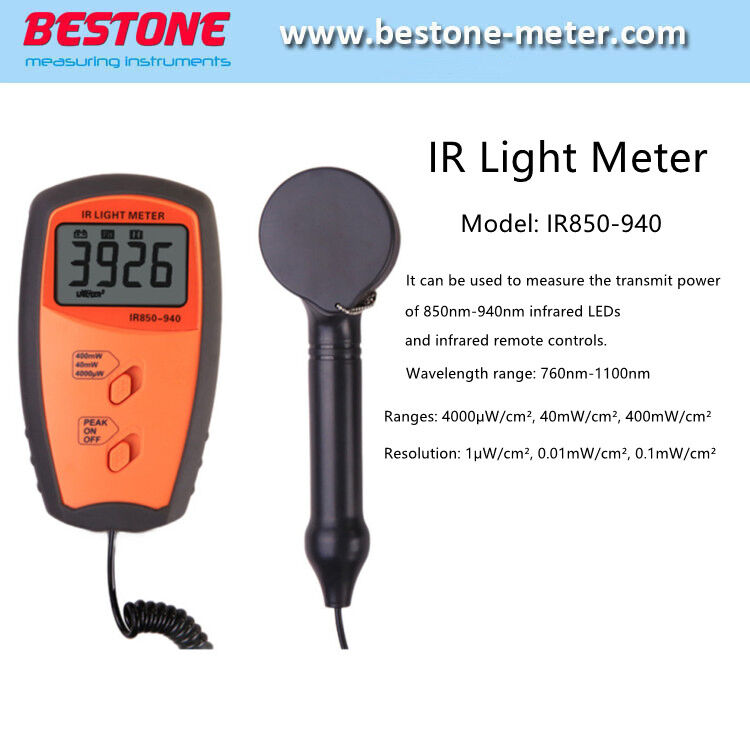

IR Light Meter, IR Radiometer IR850-940

MOQ: 2
Price: 110
Detail Information
Model NO.:
IR850-940
Ranges:
4000μw/Cm²,40MW/Cm², 400MW/Cm²
Resolution:
1μw/Cm²,0.01MW/Cm², 0.1MW/Cm²
Accuracy:
±5% + 1digit
Sampling Rate:
2 Times/S
Origin:
China
Product Description
The IR radiometer is a high-precision, power-consuming, hand-held digital instrument with stable performance, easy to use, and easy to carry. It uses SIPIN sensor and precision filter to measure near-infrared radiation intensity. It can be used to measure the transmit power of 850nm--940nm infrared LEDs and infrared remote controls. It can also be used for the detection of infrared illumination in security engineering and the detection of infrared camera performance.
FEATURES
* 3 3/4 digits LCD display, maximum indication 3999
* Measuring range:1μW/cm²-400mW/cm²
* 9V laminated battery supplies power,with low voltage prompt symbol
* Peak hold function, can track pulse signals greater than 200ms
* Shockproof rubber sleeve protects instrument safety.

specification:

Wavelength range: 760nm-1100nm

Ranges: 4000μW/cm²,40mW/cm², 400mW/cm²

Resolution: 1μW/cm²,0.01mW/cm², 0.1mW/cm²

Accuracy: ±5% + 1digit

Sampling rate: 2 times/s

Power Supply: One 9V battery,

Operating Temperature & Humidity: 0ºC to 40ºC(32ºF-104ºF)

0~80%Rh

Storage Temperature & Humidity: -10ºC to 50ºC(14ºF-122ºF)

0~80%Rh

Battery operation life: More than 150 hours

Photo detector dimension: 106x57x26mm

Meter body dimension: 130x72x30mm

Sensor structure: Silicon photodiode and infrared wavelength correction filter

Over Range indication: "OL"

Weight: approx. 210g (Battery included)
