Electric Power Tester
Created with Pixso. WT64 Visual Fault Locator with 650nm Wavelength and 10mW Output Power for Fiber Optic Testing with Universal 2.5mm Connector

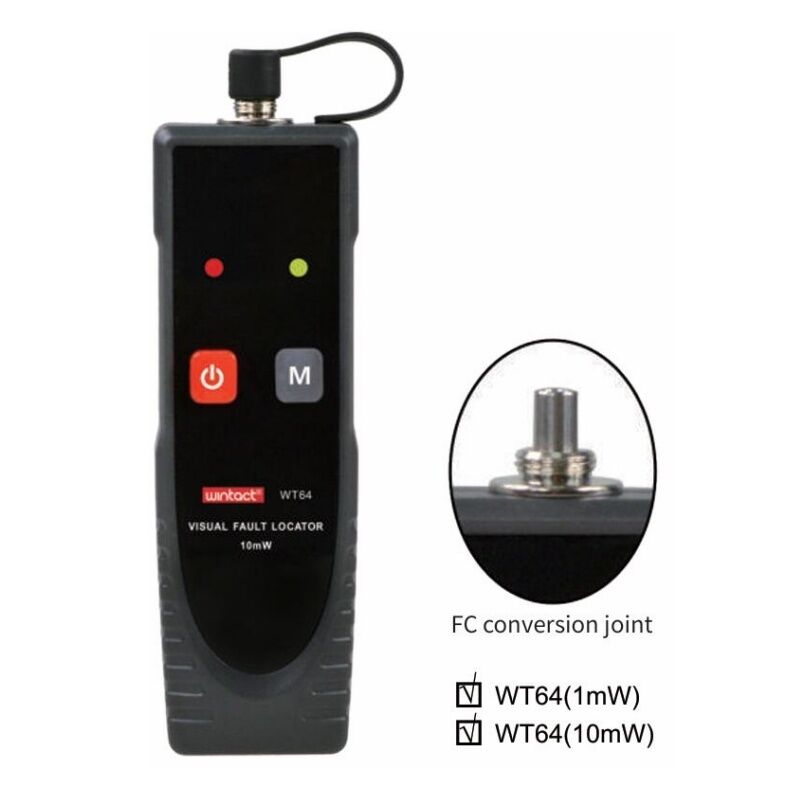

WT64 Visual Fault Locator with 650nm Wavelength and 10mW Output Power for Fiber Optic Testing with Universal 2.5mm Connector

Brand Name: WINTACT,BESTONE
Model Number: WT64
MOQ: 60
Price: EXW US$8~US$10
Delivery Time: 3-5 working days
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,FC,FDA
Model NO.:
WT64
Output Power 1:
1mW
Output Power 2:
10mW
Output Wavelength:
650nm±10nm
Optical Fiber Connector:
Universal 2.5mm Connector
Output Power:
1mW Or 10mW
Packaging Details:
Blister packaging+color card
Supply Ability:
more than 500pcs per month
Highlight:

Lightweight Visual Fault Locator

,

Visual Fault Locator Wt64

,

Telecommunication Visual Fault Locator

Product Description
WT64 Visual Fault Locator Lightweight For Telecommunication
Mini red light pen designed for maintenance of optical fiber and optical cable lines, primarily applied in optical fiber breakpoint detection. Widely used by telecom, CNC, CTT, Unicom, China Mobile, and network cabling engineering.
Application Scope
  • Telecommunication systems
  • CATV engineering and maintenance
  • Production and research of optical devices
  • Integrated construction and maintenance of network cabling
  • Other optical fiber projects
Key Features
  • Long detection length
  • Stable output power
  • Low voltage alarm
  • Strong light source
  • Small size, light weight, low power consumption
  • Universal optional interface design (supports FC/SC/ST)
  • Selected range: 1mW or 10mW
Technical Specifications
Parameter WT64 (1mW) WT64 (10mW)
Output power 1mW 10mW
Output wavelength 650nm ±10nm
Optical fiber connector Universal 2.5mm connector
Flash frequency 1Hz
Working temperature 0℃ ~ 40℃
Working humidity -10℃ ~ 60℃
Power Supply 1.5V AAA × 2 pcs
Dimension 34 × 114 × 17.5mm
Weight 59.22g (including battery)

The contents included in the shipment:
1. Visual Fault Locator:1PC;
2. 1.5V AAA battery:2PCS (International transportation does not included);

3. English Instruction Manual:1PC;
4. Blister packing:1PC.
