WTM-1200 Wireless Window Tint Meter High Accuracy ±2% with LED Light Source

Name: WTM-1200 Wireless Window Tint Meter High Accuracy ±2% with LED Light Source
Brand: Shenzhen Bestone Industrial Co.Ltd.
SKU: WTM-1200
Price: 171 USD
Availability: InStock

Brand Name:	Bestone
Model Number:	WTM-1200
MOQ:	2
Price:	US$171
Delivery Time:	3-5 working days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS

Document:

Catalog of Window Tint Mete...00.pdf

Model NO.:

Wtm-1200

Wave Length:

550 Nanometers

Interface:

USB RS-232c (Optional, Not Included In Set)

Sample Thickness:

≤ 18mm / 0.7inch

Accuracy:

≤ 2%

Power Supply:

Electronic

Light Source:

LED

Measuring Mode:

Continous

Weight:

290g (Including Batteries)

Power Source:

Main Unit: 4 X 1.5V AAA Batteries,Light Emitter: 2

Size:

Main Unit: 141 X 65 X 38 Mm,Light Emitter: 70 X 62

Packaging Details:

Plastic carrying case and white paper box

Supply Ability:

More than 100pcs per month

Highlight:

Wireless Window Tint Meter

High Accuracy 2% Window Tint Meter

LED Light Source Light Transmittance Gauge

Product Description

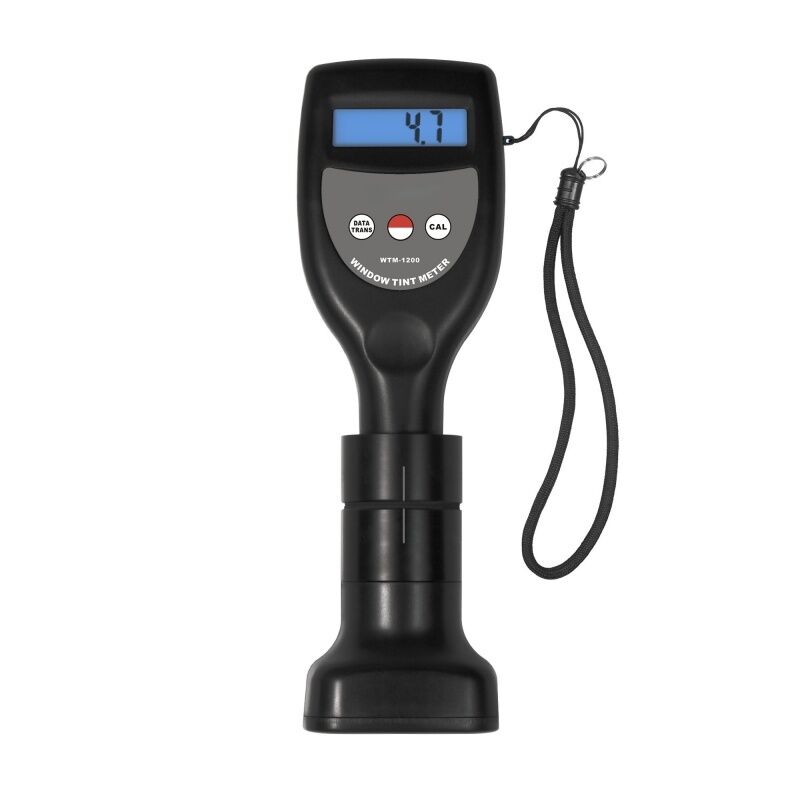

Window Tint Meter (Wireless Type) Model WTM-1200

Applications

This meter is designed to measure light transmittance for various transparent and translucent materials with parallel planes, including automotive manufacturing, aerospace components, glass products, plastic sheets, and similar materials. It can also determine turbidity or clarity in liquid samples such as water and beverages.

Key Features

Handheld device for measuring window light transmission
Designed in compliance with GB 2410-80, ASTM D1033-61, JIS k7105-81 standards
Digital LCD display with wide measurement range and high resolution
Wireless design for easy operation and portability
One-key calibration for simplified use
Compact, lightweight construction for easy carrying
USB data output for PC connectivity
Optional Bluetooth data output capability

Technical Specifications

Parameter	Specification
Display	LCD
Measurement Range	0~100%
Resolution	0.1
Accuracy	±2%
Sample Thickness	≤18 mm / 0.7 inch
Light Source	LED
Measuring Mode	Single / Continuous
Operating Conditions	Temperature: 0~50ºC, Humidity: <90%
Power Supply (Main Unit)	4x1.5V AAA (UM-4) Battery
Power Supply (Light Emitter)	2x1.5V AAA (UM-4) Battery
Size (Main Unit)	141x65x38mm
Size (Light Emitter)	70x62x52mm
Weight	290g (Including Batteries)

Standard Accessories

Main Unit, Light Emitter, Standard Block, Carrying Case, Operation Manual

Optional Accessories

USB Data Cable with Software, Bluetooth Data Adapter with Software
