| Brand Name: | Bestone |
| Model Number: | 86120 |
| MOQ: | 1 |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |

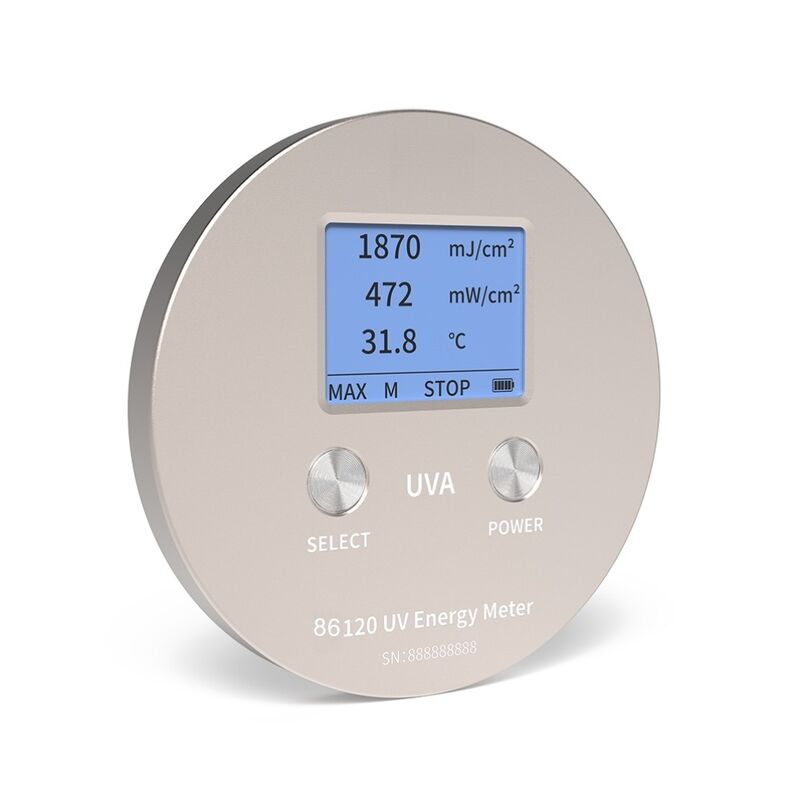

86120 UV energy meter can not only measure energy, power, temperature and measuring time at the same time
but also display the energy and power curves,export data and print test report. It has created many firsts in the UV energy meter industry:
There are two measurement modes. One is Manual mode which needs to start up or end of measurement manually.
Another is automatic modes that can automatic switch-on or end of measurement when the energy intensity emitted
by the light source is above or below the trigger threshold that can be set.
There are four interfaces to help you know better about UV light source you tested: In maximum values interface,
you can acquire cumulative energy value, maximum power value and maximum temperature value.
Measurement time can be recorded in RT interface. In temperature and power curve interface,
you can know the temperature change and energy intensity variation of the light source. Four interfaces can be switched freely.
The 86120 UV Energy Meter can be connected to PC software,
which allows you to generate reports and print out test results, as well as to export test data.
High-accuracy and fast-response temperature detector, truly dynamic measurement of the actual temperature in the curing machine.
Built-in heat shield, high temperature resistant design.
The UV energy meter can run in the environment of 100 degrees Celsius for a long time.
For details on the high-temperature resistance experiments of the UV energy meter,
you can click the article below to check: Use Time of UV Energy Meter at Different High Temperature.
| Parameter | 86120 UV Energy Meter |
| Application | Light intensity, energy and temperature measurement of high pressure mercury lamp |
| Spectral Range | 315nm - 400nm, λp = 365nm |
| Power Measuring Range | 0 - 2000 mW/cm² |
| Power Resolution | 0.1 mW/cm² |
| Energy Measuring Range | 0 - 999999mJ/cm² |
| Measuring accuracy (H is the Standard Value) | H<5mW/cm²: ±0.5mW/cm² H>=5mW/cm²: ±10%H, ±5% (typical) |
| Temperature Measuring Range | -55°C - +125°C |
| Sampling Speed | 2048 times/second |
| Power Data Storage Interval | 32 times/second |
| Temperature Data Storage Interval | 2 times/second |
| Recording Period | 32 min |
| Power Supply | 2 AAA alkaline dry batteries |
| Display | Dot matrix LCD |
| Test Hole Diameter | Φ10mm |
| Dimension | Diameter 120mm * thickness 13mm |
| Weight | 225g |
| No. | Description | Quantity | Unit |
| 1 | 86120 UV Energy Meter | 1 | pcs |
| 2 | USB Cable | 1 | pcs |
| 3 | Antistatic Gloves | 1 | pcs |
| 4 | Cross Head Screw-driver | 1 | pcs |
| 5 | User Manual | 1 | pcs |
| 6 | Certificate/Warranty Card | 1 | pcs |
| 7 | Plastic Box Dimension 25*21*7cm (L*W*H) | 1 | pcs |
| 8 | Calibration Report | 1 | pcs |
