| Brand Name: | Bestone |
| Model Number: | SM8124A |
| MOQ: | 20 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

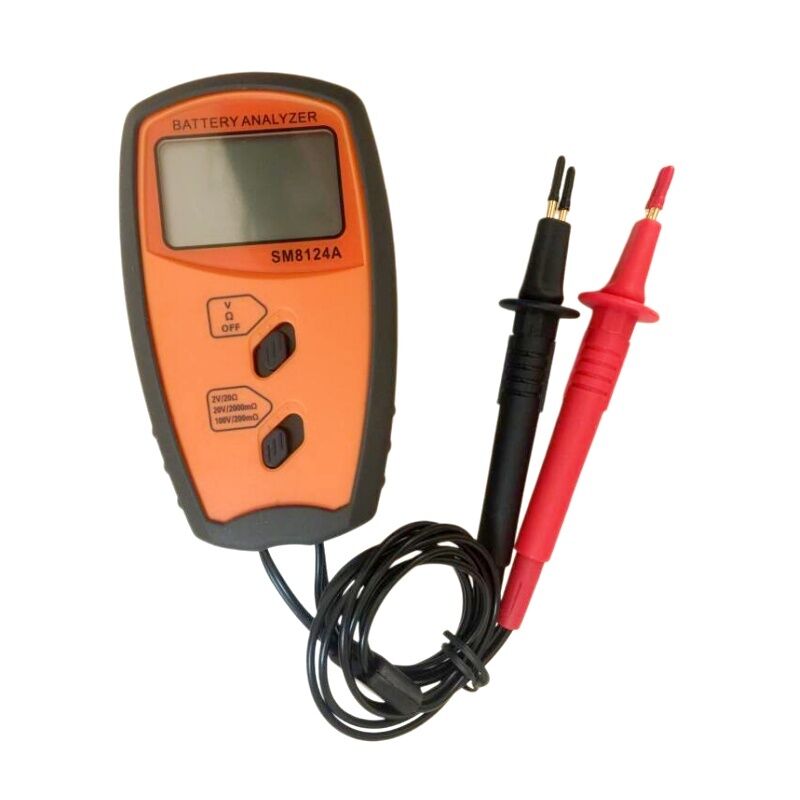

Battery internal resistance tester is an intelligent instrument specifically designed to measure various battery resistance.
It is suitable for the internal resistance measurement of various single cells and assembled batteries such as lithium ion,nickel metal hydride, zinc manganese, lead acid, etc.,to quickly assess the pros and cons of the battery
1.a)Voltage measurement range
0~1.999V
2V~19.99V
20V~100.0V
b)Voltage resolution:
(0~1.999V)1mV
(2V~19.99V)10mV
(20V~100.9V)100mV
c)measurement accuracy :±(1%+1)
2. a)Internal resistance measurement range:
1mΩ~199.9mΩ
200mΩ~1999mΩ
2Ω~19.99Ω
b) Internal resistance resolution:
(1mΩ~199.9mΩ)0.1mΩ
(200mΩ~1999mΩ) 1mΩ
(2Ω~19.99Ω) 10mΩ
c)Measurement accuracy :±(5%+1)
3. Environment temperature::0ºC~40ºC Humidity: ≤85%RH
4. Power:One 9V battery
5. Display: LCD
6. Low voltage prompt
7. Weight: 177g (included battery)
8. Dimensions: 130×72×30mm
