| Brand Name: | Bestone, Benetech |
| Model Number: | GT5307B |
| MOQ: | 10 |
| Price: | negotiable |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union,MoneyGram |

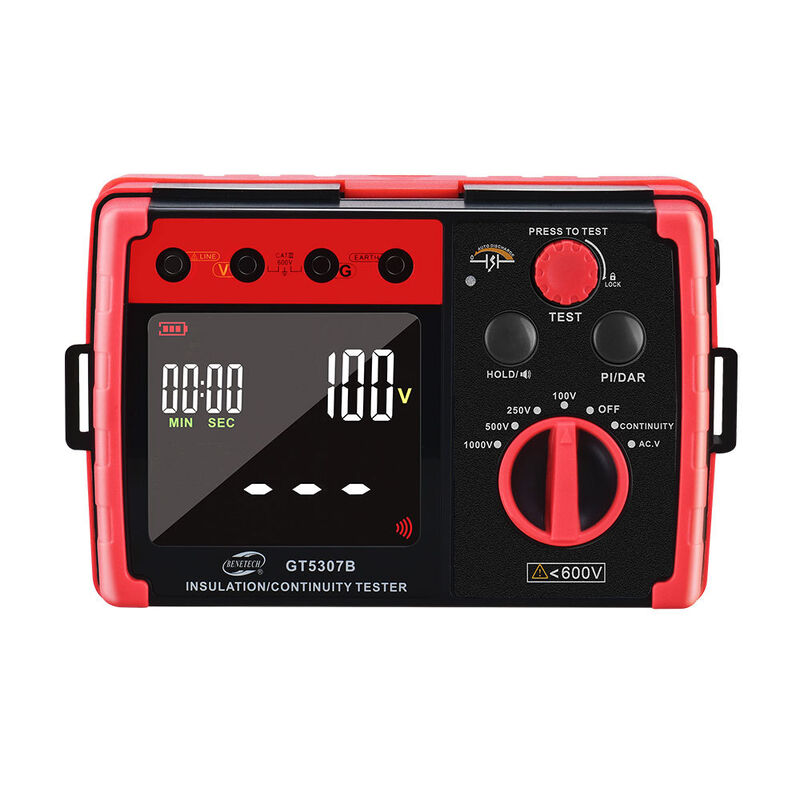

This advanced insulation/continuity tester features a new design with large-scale integrated circuits for precise measurement of insulation resistance, DC voltage, and AC voltage. With comprehensive functions, high accuracy, and stable performance, it's ideal for testing transformers, motors, cables, switches, and various electrical equipment.
| Display | Large-screen LCD (up to 500 counts) |
|---|---|
| Over Limit Indication | Hi mark appears on insulation resistance range |
| Auto Range | Higher range: 500 counts; Lower range: 1 count |
| Sampling Rate | 2 times per second |
| Operation Environment | Temperature: 0°C-40°C / Humidity: ≤85% |
| Storage Environment | Temperature: -20°C-60°C / Humidity: ≤90% |
| Power Supply | DC9V (6x1.5V AA batteries) |
| Dimensions | 176*110*77mm |
| Rated Voltage | 100V/250V/500V/1000V |
|---|---|
| Measurement Range | 0~1.5GΩ/0~5.5GΩ/0~5.5GΩ/0~5.5GΩ |
| Accuracy | ±5%rdg±3dgt (above 100KΩ) |
| Open Circuit Voltage | About 5.0V |
|---|---|
| Measuring Range | 0-999Ω |
| Resolution | 0.1Ω |
