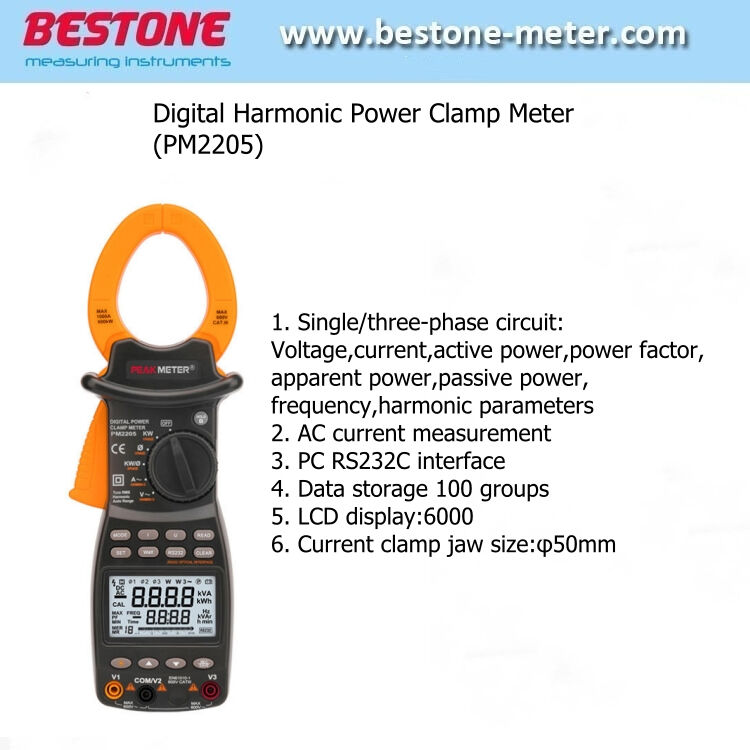

Features:
* Measuring Voltage, Current, Voltage/current peak, effective/apparent power(single-phase or 3-phase, power factor, reactivity, phase angle, frequency, phase detection(3-phase), voltage/current harmonic levels(up to 20th)and total harmonic distortion(THD-F and THD-R)
| Function | Range | Accuracy |
| AC Voltage(v) | 0.1V~600V | ±(1.2% +5) |
| AC Current(A) | 0.1A~1000A | ±(2.0% +5) |
| Active power(KW) | 0.1Kw~600kW | ±(3.0% +5) |
| Apparent Power(kVA) | 0.1kVA~600kVA | ±(3.0% +5) |
| Reactive Power(kVar) | 0.1kVAr~600kVAr | ±(3.0% +5) |
| Power factor | 0.3~1 | ±(0.02%+2) |
| Harmonic measurement 45Hz~65Hz(Fundamental Frequency) |
Harmonic Number 1 Harmonic Number 2-6 Harmonic Number 7-8 Harmonic Number 9-10 Harmonic Number 11-15 Harmonic Number 16-20 |
±(3.0% +10) ±(3.5% +10) ±(4.5% +10) ±(5.0% +10) ±(7.0% +10) ±(10% +10) |
| Display | 6000 counts | |
| Jaw Opening | Φ 50mm/2.0" | |
| Auto Ranging | √ | |
| Data Logging and recall | 100 groups | |
| True RMS | True Root Mean Squre Measurement | |
| Data Hold and auto power off | √ | |
| Display Backlight | √ | |
| RS232 Interface | √ | |
| Power supply | 4x1.5V AA Battery | |
| Product size | 300mmx96mmx5mm | |
| Product weight | 530g | |
| Safety Rating | CE CAT.III 600V RoHS | |
