| Brand Name: | Bestone |
| Model Number: | SM6234PLUS |
| MOQ: | 10 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

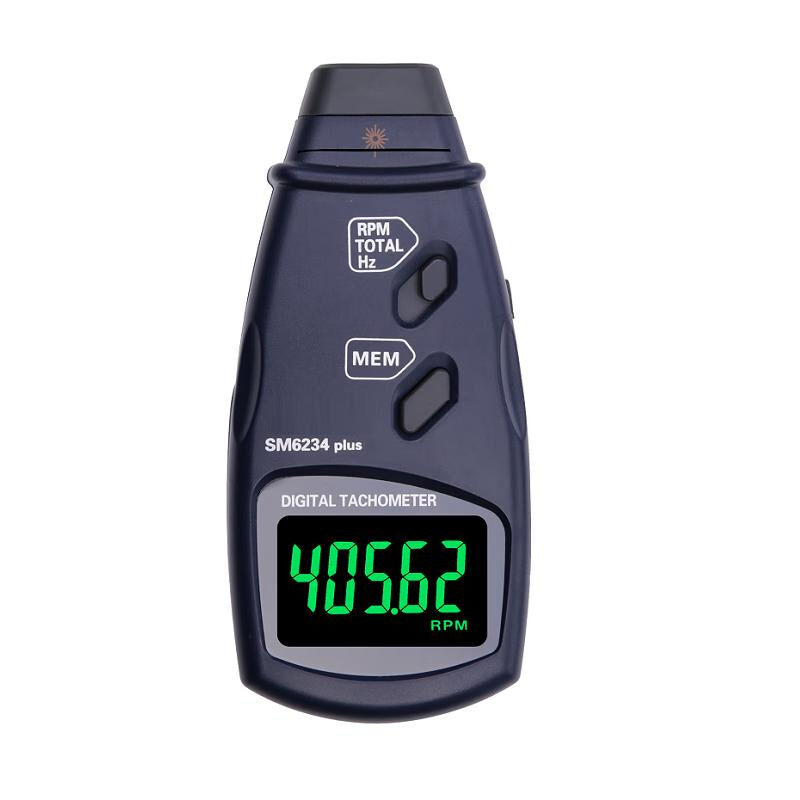

The tachometer is an essential instrument for the machinery industry, designed to measure rotational speed, linear velocity, or frequency of motors. It provides precise measurement of impeller blade, expansion cylinder, and spindle rotation speeds, making it suitable for various applications in motor, fan, washing machine, textile, automotive, aircraft, and ship industries.
| Display | 5-digit LCD display, character height 18mm |
|---|---|
| Test Range | Speed measurement: 2.50~99999 r/min Frequency measurement: 0.05~999.99 r/sec, 1~10000 Count |
| Resolution | 0.01 RPM (2.50~999.99 RPM) 0.1 RPM (1000.0～9999.9 RPM) 1 RPM (10000 RPM and above) 0.01Hz (0.05~999.99 Hz) |
| Over-range Display | --OL-- |
| Measurement Accuracy | ±(0.05% + 1 digit) |
| Sampling Time | 0.8 seconds (over 120 RPM) |
| Range Selection | Automatic switching |
| Time Base | 6MHz quartz crystal |
| Effective Distance | 50～500mm |
| Power Source | 3*1.5V AA UM-4 batteries |
| Power Consumption | Approximately 35mA |
| Operating Temperature | 0～40℃ |
| Size | 155*70*35mm |
| Weight | 180g (including battery) |
| Accessories | 1 portable box, 3 reflective tapes (190mm*11mm), 1 operation manual |
