Industrial Measurement Equipment
Created with Pixso. DT2234E Digital Tachometer with 2.5-99999rpm Range Non-Contact Measurement and 5-Digit LCD Display

DT2234E Digital Tachometer with 2.5-99999rpm Range Non-Contact Measurement and 5-Digit LCD Display

Brand Name: Bestone
Model Number: DT2234E
MOQ: 20
Delivery Time: 5-8 working days
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE
Application:
Vehicle
Display:
5-Digit LCD Display, Character Height 18mm
Connection Type:
Non-Contact
Shakeproof:
Not Shakeproof
Noctilucence:
Backlight
Weight:
180g (including Battery)
Test Range:
2.5-99999rpm (R/Min)
Resolution:
0.1 Rpm (0.5-999.9 Rpm),1 Rpm (Above 10)
Measurement Accuracy:
±(0.05%+1digit)
Sampling Time:
0.6 Seconds (Above 100 Rpm)
Packaging Details:
plastic carrying case
Highlight:

2.5-99999rpm Digital Tachometer

,

Non-Contact Tachometer

,

5-Digit LCD Display Tachometer

Product Description

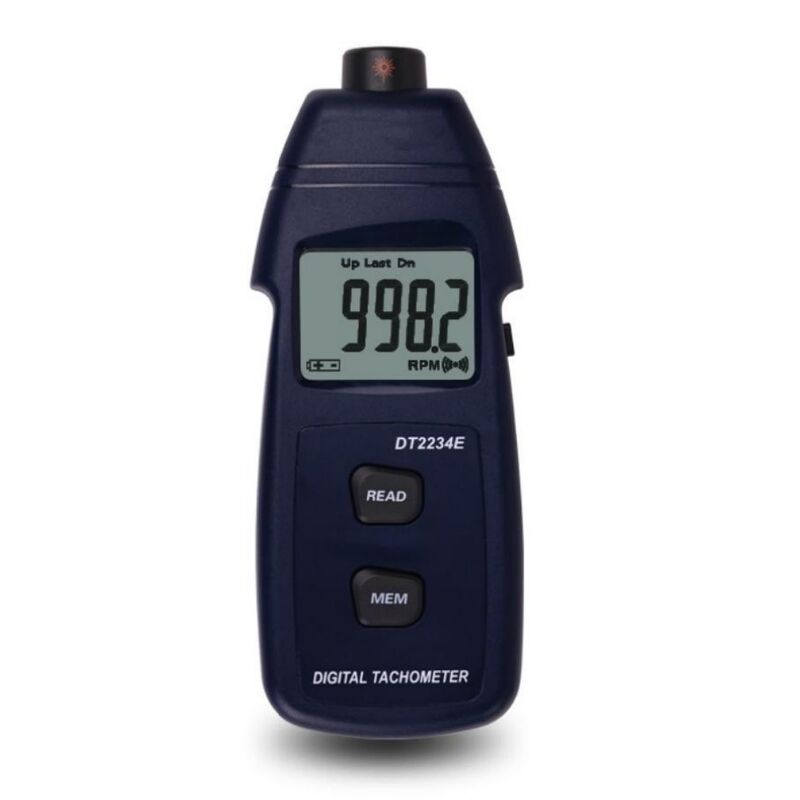

DT2234E Photoelectric Technology Tachometer 2.5-99999rpm Digital Display
Product Overview
The tachometer is an essential instrument for the machinery industry, designed to measure rotational speed, linear velocity, or frequency of motors. It provides precise measurement of rotational speed for impeller blades, expansion cylinders, and spindles, making it suitable for various industries including motor, fan, washing machine, textile, automotive, aircraft, and marine applications.
Key Features
  • Ergonomic streamlined design with comfortable palm grip for convenient operation
  • Advanced microcomputer, photoelectric, and anti-interference technologies for accurate non-contact measurement
  • Wide application range with extensive measurement capabilities, high resolution, and minimal error
  • Large screen display with clear, parallax-free reading
  • Automatic memory function for maximum, minimum, final values, and 500 instantaneous readings
  • Low battery voltage indicator for power management
  • Durable construction with optimized electronic components and lightweight, hard ABS plastic casing
Technical Specifications
Display 5-digit LCD display, character height 18mm
Test Range 2.5~99999 RPM (r/min)
Resolution 0.1 RPM (2.5~999.9 RPM), 1 RPM (above 1000 RPM)
Measurement Accuracy ±(0.05%+1 digit)
Sampling Time 0.6 seconds (above 100 RPM)
Range Selection Automatic switching
Memory Function Automatic storage of maximum, minimum, last value and 500 instantaneous values
Time Base Quartz crystal
Effective Distance 50~500mm
Power Source 3×1.5V AA UM-4 batteries
Power Consumption Approximately 35mA
Operating Temperature 0~40℃
Size 160×74×37mm
Weight 180g (including battery)
Package Contents
  • Tachometer: 1 piece
  • Portable box: 1 piece
  • Reflective tapes (190mm×11mm): 3 pieces
  • English Instruction Manual
  • 3×1.5V AA UM-4 batteries (not included for international transportation)
Note: Batteries are not included with international shipments due to transportation regulations.
