Created with Pixso. BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe

BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe

Brand Name: Bestone
Model Number: BTT-2880S
MOQ: 2
Price: negotiable
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
10Hz-680Hz
Belt Free Strand Length:
Max 999.9 Mm
Belt Width:
Max 999.9 Mm/R
Belt Mass:
Max 999.9 G/M
Precision:
±1Hz<100Hz And ±1%>100Hz
Packaging Details:
plastic carrying case and white paper box
Supply Ability:
more than 100pcs per month
Highlight:

680Hz Digital Belt Tension Meter

,

Adjustable Probe Digital Force Gauge

,

Acoustic Belt Tension Tester

Product Description
Acoustic Belt Tension Tester BTT-2880S
This precision instrument measures the vibration frequency (in Hertz) of transmission belts during impact or rapid movement, providing accurate tension analysis for industrial applications.
Key Features
  • Adjustable probe for versatile measurement applications
  • Storage capacity for 20 belt parameter sets
  • Maximum frequency measurement: 680 Hz
  • Automatic shutdown functionality
Measurement Principle
The BTT-2880S operates on the principle of "transverse vibration of string" theory. The tester detects belt vibrations and converts them to frequency readings. By inputting mass, width, and span parameters, the tension relationship is calculated using the formula:
T = 4 × M × W × S² × F² × 10⁻⁹
Technical Specifications
Measuring Range 10Hz - 680Hz
Belt Free Strand Length Max 999.9 mm
Belt Width Max 999.9 mm/R
Belt Mass Max 999.9 g/m
Precision ±1Hz <100Hz and ±1% >100Hz
Digital Sampling Accuracy < 1%
Display Accuracy ±1Hz
Overall Accuracy < 5%
Operating Temperature +10°C ~ +50°C
Transport Temperature -5°C ~ +70°C
Display LCD
Measurement Unit Hz/N
Power Supply 4 × 1.5V AAA Batteries
Housing Material Plastic (ABS)
Dimensions 140mm × 72mm × 34mm
Package Size 248mm × 206mm × 52mm
Standard Accessories
  • Main Unit (1)
  • Operating Instructions (1 copy)
  • Portable Suitcase (1)
Product Images

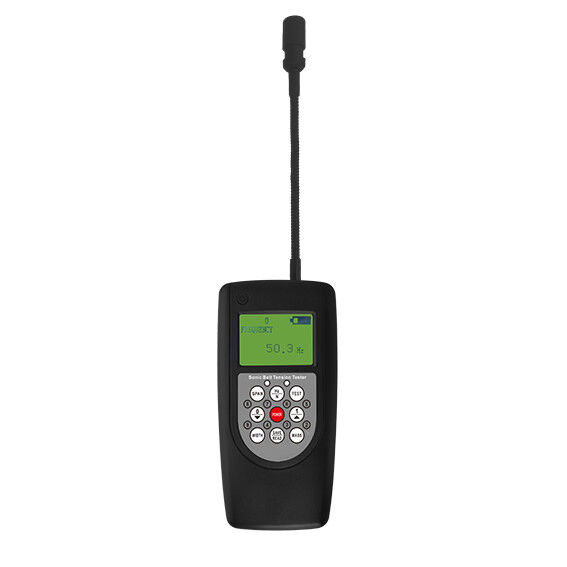

 BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe 0
