| MOQ: | 1 |
| Price: | 139 |
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.

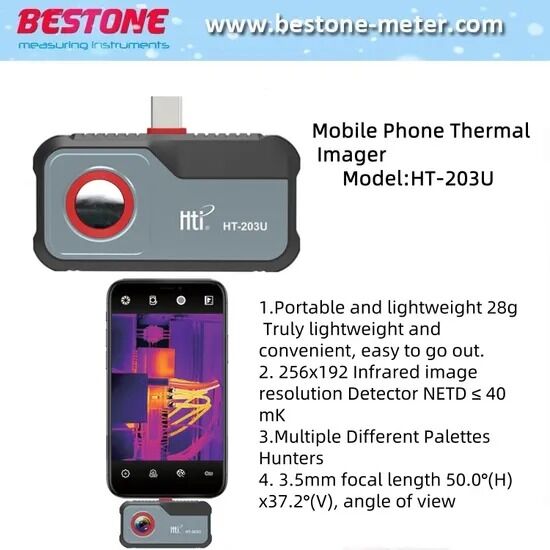

| Model | HT-203U |
| Infrared | |
| Infrared image resolution | 256x192 |
| Detector type | Vanadium oxide uncooled infrared focal plane |
| Focal length | 3.5mm |
| Working Wavelength Range | 8 - 14μm |
| Pixel spacing | 12μm |
| NETD | ≤ 40mK@25ºC, @F/1.0 |
| Image frame rate | ≤25Hz |
| Angle of view | 50.0°(H)x37.2°(V) |
| Focusing mode | Free Focus |
| Display | |
| Brightness adjustment | Supported |
| Contrast adjustment | Supported |
| Palettes | White hot, black hot, blend, iron, dark brown, red hot, green hot, rainbow |
| Temperature measurement function | |
| Temperature measurement method | Point, line and regional temperature measurement |
| Temperature measurement range | -20ºC~120ºC(-4ºF~248ºF)and 120ºC-550ºC(248ºF-1022ºF) |
| Temperature measuring distance | 0.3m-3m |
| Temperature measurement accuracy | ±2°C or reading ±2% |
| System function | |
| Power consumption | ≤0.36W |
| Camera/video | Supported |
| Picture/video format | JPG/MP4 |
| Language | Chinese, English, Russian |
| External interface | USB Type-C, DC5V power supply |
| Work/storage environment | |
| Operating Temperature Range: | -20ºC to +50 ºC |
| Storage Temperature Range: | -30 ºC to +70 ºC |
| Interface Type: | Type-C Interface |
| Size/weight | |
| Product size | 46x70x14mm |
| Weight: | 45g |
