| Brand Name: | Bestone |
| Model Number: | LTTS series |
| MOQ: | 2 |
| Price: | negotiable |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |

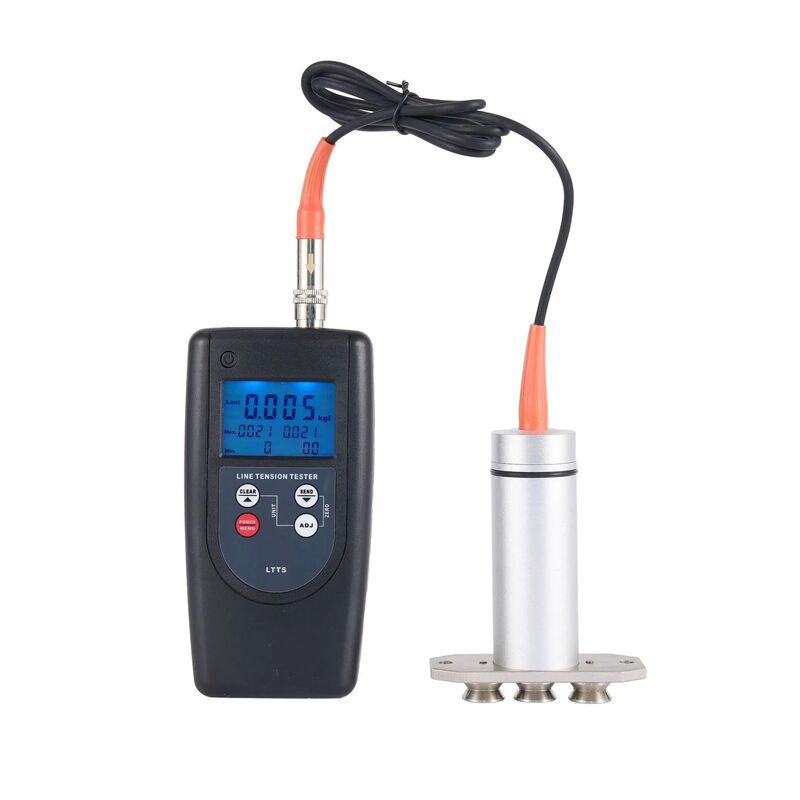

The LTTS Digital Tension Meter is a precision hand-held device that accurately measures both running and static tensions for a wide variety of process materials including yarns, fibers, wires, and optical fibers.
| Units | Kgf, gf, N, Lbf |
| Measuring Principle | Strain gauge |
| Measuring Frequency | 16 msec (62.5 samples/sec) |
| Sensing Roller | Deflection of Sensing Roller (max.) 0.2 mm |
| Overload Capacity | 150% of Full Scale |
| Temperature Coefficient | Zero: less than ±0.3% FS/°C Span: less than ±0.01% FS/°C |
| Display | Blue Back light LCD |
| Display Update Rate | 0.5, 1.0, 2.0 or 4.0 seconds, selectable |
| Memory System | Current Value, Max. Value, Peak Value, Min Value |
| Overrange Indicator | Buzzer Alarm |
| Power Off | 10 Minutes Auto, Manual |
| Data Output | USB, Bluetooth (Optional) |
| Roller Material | Stainless Steel (Standard), Plastic (Optional) |
| Maximum Speed | 2000 m/min |
| Power Supply | 4 x 1.5 AAA(UM-4) Battery |
| Operation Temperature | 0 ~ 40 °C |
| Operation Humidity | < 80% |
| Weight | 400 g |
| Size | Main Unit: 149 x 70 x 30 mm Sensor: 102 x 81 x 34 mm |
| Model | LTTS-200 | LTTS-500 | LTTS-1K | LTTS-2K | LTTS-5K | LTTS-10K | LTTS-20K | LTTS-50K |
|---|---|---|---|---|---|---|---|---|
| Tension Range | 0-0.2kgf 0-200gf 0-1.96N 0-0.44Lbf |
0-0.5kgf 0-500gf 0-4.9N 0-1.1Lbf |
0-1.0kgf 0-1000gf 0-9.8N 0-2.2Lbf |
0-2.0kgf 0-2000gf 0-19.6N 0-4.4Lbf |
0-5.0kgf 0-5000gf 0-49N 0-11Lbf |
0-10.0kgf 0-98N 0-22Lbf |
0-20.0kgf 0-196N 0-44Lbf |
0-50.0kgf 0-490N 0-110Lbf |
| Resolution | 0.001kgf 1gf 0.001N 0.001Lbf |
0.001kgf 1gf 0.001N 0.001Lbf |
0.001kgf 1gf 0.001N 0.001Lbf |
0.001kgf 1gf 0.01N 0.001Lbf |
0.01kgf 1gf 0.01N 0.01Lbf |
0.01kgf 0.01N 0.1Lbf |
0.01kgf 0.01N 0.1Lbf |
0.01kgf 0.01N 0.1Lbf |
| Accuracy | ±1.0% or better | ±1.5% or better | ||||||
| Gear spacing | 52mm | 105mm | 210mm | |||||
