| MOQ: | 1 |
| Price: | 145 |
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.

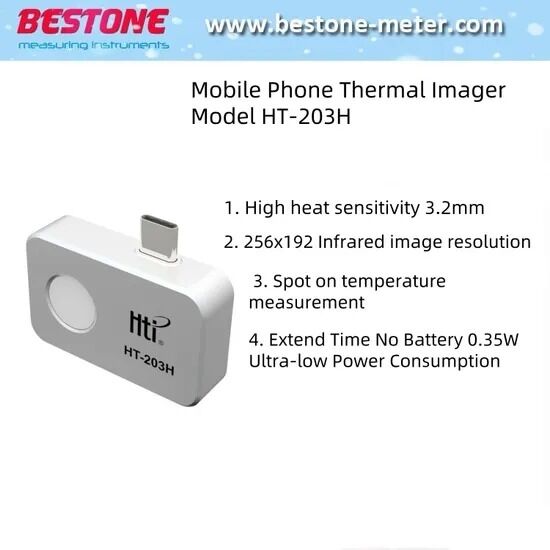

| Model | HT-203H |
| Infrared | |
| Infrared image resolution | 256x192 |
| Detector type | Vanadium oxide uncooled infrared focal plane |
| Focal length | 3.2mm |
| Working Wavelength Range | 8 - 14μm |
| Pixel spacing | 12μm |
| NETD | <50mK@25ºC, @F/1.0 |
| Image frame rate | ≤25Hz |
| Angle of view | 56°(H)x42°(V) |
| Focusing mode | Free Focus |
| Display | |
| Palettes | White hot, black hot, iron hot, iron red, red hot, rainbow-1, rainbow-2, rainbow-3, rainbow-4, rainbow-5 |
| Temperature measurement function | |
| Temperature measurement method | Point, line and regional temperature measurement |
| Temperature measurement range | -15ºC~150ºC(5ºF~302ºF)and 150ºC-550ºC(302ºF-1022ºF)(Automatic gear shifting not supported) |
| Temperature measuring distance | 0.25m-5m |
| Temperature measurement accuracy | -15°C to -10°C;±3°C ;-10°C to 500°C;±2°C or reading ±2% |
| System function | |
| Power consumption | ≤0.35W |
| Camera/video | Supported |
| Picture/video format | JPG/MP4 |
| Language | Chinese, English, Russian |
| External interface | USB Type-C, DC5V power supply |
| Work/storage environment | |
| Operating Temperature Range: | -10ºC to +75 ºC |
| Storage Temperature Range: | -45 ºC to +85 ºC |
| Size/weight | |
| Product size | 46x36.7x11.5mm |
| Weight: | 15g |
