| Brand Name: | Bestone |

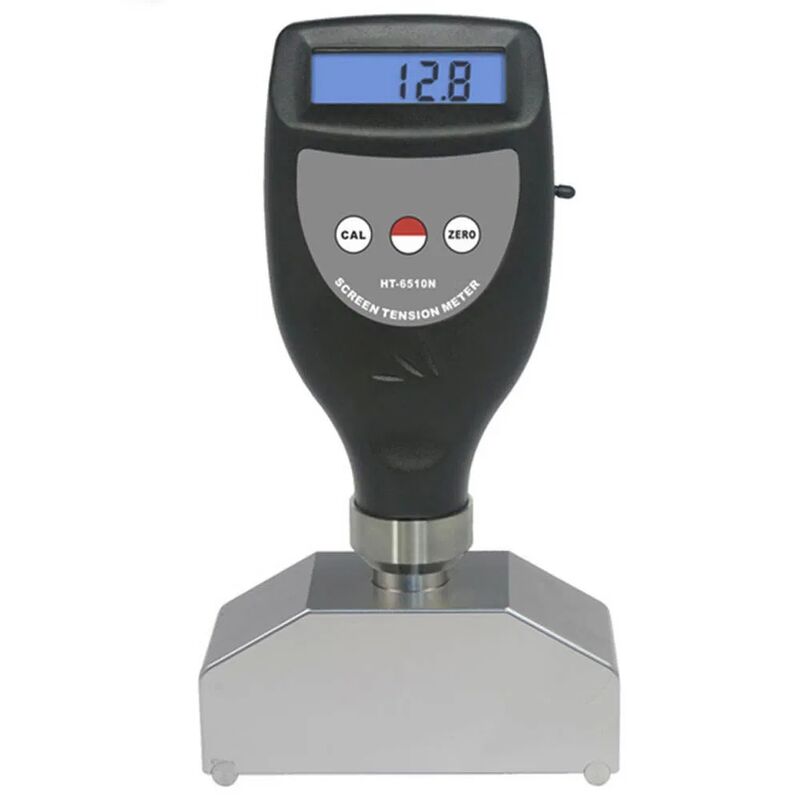

| Model Number: | HT-6510N |
| MOQ: | 2 |
| Price: | US$195 |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union |
| Wire Mesh Type | Printing Task | Tension (N/cm) |
|---|---|---|
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical) | 16~20 |
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net (Standard Monofilament) | Multicolor and Four-Color Printing (Manual) | 8~12 |
| Ordinary Polyester Net (Standard Monofilament) | Flat Object | 8~12 |
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
| Mesh Type | Mesh Count | Maximum Tension (N/cm) | Regulating Pressure (kg/cm) |
|---|---|---|---|
| 77T | 200 mesh | 30N/cm | 7kg/cm |
| 90T | 230 mesh | 25N/cm | 6.5kg/cm |
| 100T | 250 mesh | 23N/cm | 6kg/cm |
| 120T | 300 mesh | 21N/cm | 5.7kg/cm |
| 140T | 350 mesh | 20N/cm | 5.3kg/cm |
| 165T | 420 mesh | 18N/cm | 5kg/cm |
