| MOQ: | 1 |
| Price: | 722 |
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
| Model | HT-H8 |
| Display Screen | 3.5 inch full angle TFT display |
| Infrared image resolution | 384 x 288 |
| Focal length | 13mm |
| Field angle | 28.4°x 21.4° |
| Pixel spacing | 17μm |
| IFOV | 1.3mrad |
| Working band | 8~14um |
| NETD | ≤50mk@25°C, @F/1.0 |
| Image frame rate | 25Hz |
| Focusing mode | Manual focus |
| Emissivity setting | Adjustable from 0.01 ~ 1.00 |
| Color palette | Rainbow, iron, cold color, white hot, black hot |

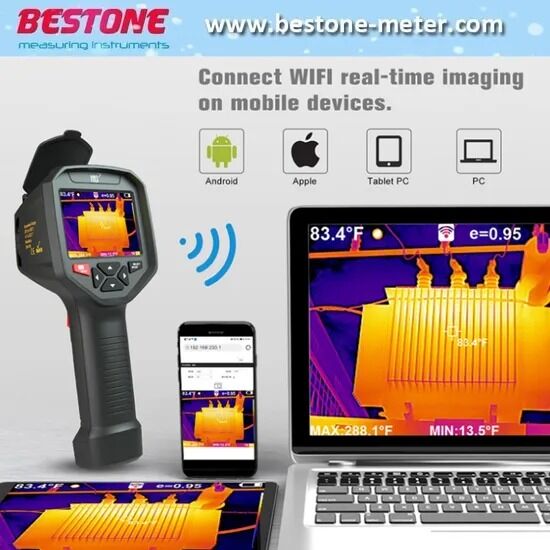

| WIFI | Support |
| LCD resolution | 640x480 |
| Setting | Unit, language, date, time, information |
| Temperature measurement range | -20°C~550°C(-4°F~1022°F) |
| Measurement accuracy | ±3%; |
| Other | |
| Device storage | Built-in 8G(actually available 6.6G) |
| File format | JPG |
| Language | Chinese, English, Italian, German |
| Power supply | Built-in chargeable 5000mAh lithium battery |
| Power interface | Micro USB 2.0 |
| Work temperature | 0°C~+45°C |
| Storage temperature | -20°C~+60°C(-4°F~140°F) |
| Relative humidity | <85%RH(non-condensing) |
| Product size | 256mmx97.2mmx128.9mm |
| Product weight | 635g |
