| MOQ: | 1 |
| Price: | 199 |

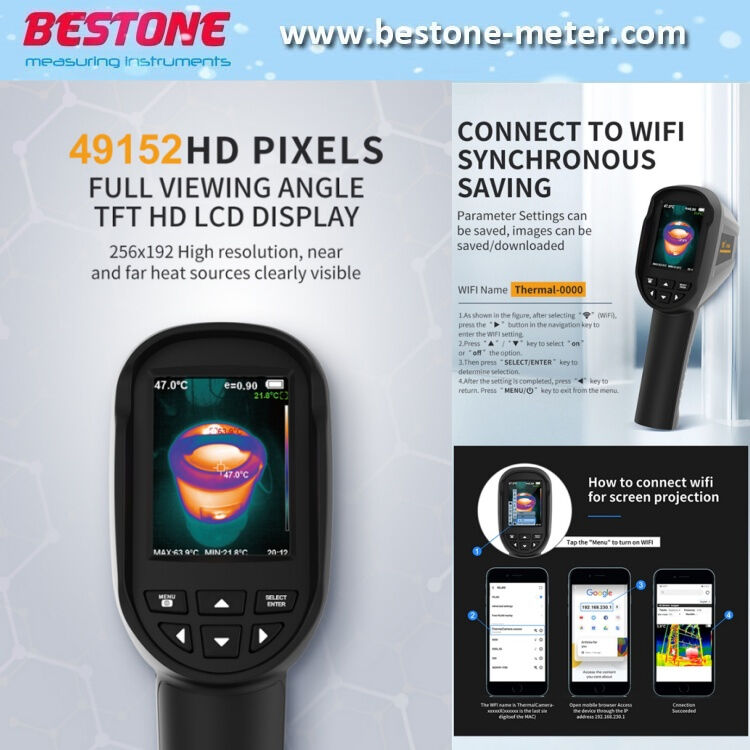

Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
| Model | HT-06 |
| Display screen | 2.8"TFT display screen |
| Infrared image resolution | 256x192 |
| Visible image resolution | 640×480 |
| Focus length | 3.2mm |
| Field angle | 56°× 42° |
| IFOV | 3.75mrad |
| Pixel spacing | 12μm |
| Frame rate | ≤25Hz |
| Focusing mode | Non-heating fixed/focus lens |
| NETD | ≤50mK @ 25°C, @ F/1.0 |
| Wavelength coverage | 8~14μm |
| Emissivity | Adjustable from 0.01 to 1.00 |
| Color palette | Rainbow, Iron oxide red, Cold color, White hot, Black hot |
| Measuring range | -20°C~+550°C(-4°F~1022°F) |
| Accuracy | -15°C~550°C(±2°C/±2%);-20°C~15°C(±4°C) |
| Setting | Unit, Language, Date, Time, Format, Auto power-off |
| Language | Chinese, English, German, Italian |
| Storage capacity | Built-in 4G eMMC (user available storage space is about 3G) |
| File format | JPG/MP4 |
| Power interface | Type-C |
| Battery type | Built-in Lithium battery |
| Battery capacity | 2000mAh |
| Work temperature | 0°C~45°C(32°F~113°F) |
| Working time | 2~3 hours |
| Storage temperature | -20°C~+60°C(-4°F~140°F) |
| Relative humidity | 10%-85%RH(non-condensing) |
| Product size | 96×72×226mm |
| Product weight | 375g |
