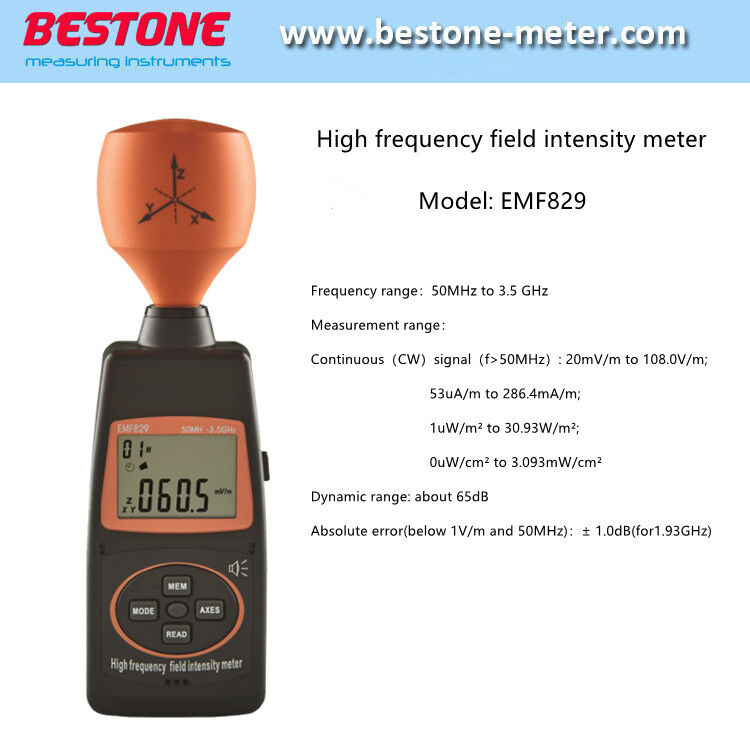

High Frequency Field Intensity Meter Emf829 Isotropic 50MHz To 3.5 GHz

MOQ:	2
Price:	115

Detail Information

Product Description

Detail Information

Model NO.:

EMF829

Frequency Range:

50MHz To 3.5 GHz

Measurement Range:

20mv/M To 108.0V/M

Dynamic Range:

About 65dB

Absolute Error(Below 1V/M And 50MHz):

± 1.0dB(For1.93GHz)

Frequency Response:

± 3.0dB (50MHz~800MHz)

Transport Package:

Carrying Case

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

Highlight:

High Frequency Field Intensity Meter

Intensity Meter Emf829

Isotropic Intensity Meter

Product Description

This meter is designed as wide frequency to supervise high frequency transmission of range from 50MHz to 3.5GHz. It has the non-directional measurement feature and high sensitivity. It can be used to measure electromagnetic field intense of the transverse electromagnetic wave cell and Absorber rooms.

Feature:
* Metrical ways:digit display, measuring with three axes
* Characteristic of directivity : isotropic, three axes
* Metrical gear: one continuous gear
* Resolution displayed: 0.1mV/m,0.1uA/m,0.1uW/mÂ²,mW/mÂ²,uW/cmÂ²
* Reaction time: about 1 second (the measurement value is from 0 to 90% )
* Refresh rate displayed: about 0.5 second
* Display format: LCD, 4 digits
* Alarm: buzzer
* Units: mV/m,V/m,uA/m,mA/m,uW/mÂ²,mW/mÂ²,uW/cmÂ²
* Displayed value: the instantaneous measurement value, the MAX measurement value, average measurement value and the maximum averaging value
* Warning function: you can adjust the setting value and you also can open the function or close it.
* Correction factor(CAL): it can be adjusted
* Manual memory and reading data content: 70 groups(only recall by meter)
* battery: 4 batteries of 1.5V
* Battery life: about 15 hours
* Power off automatically: 15 min
* The range of the operation temperature: from 0Â°C to +50Â°C
* The range of the operation humidity: from 25% to 75%RH
* The range of the stored temperature: from -10Â°C to +60Â°C
* The range of the stored humidity: from 0% to 80%RH
* Size: 261cm(length)* 73cm(width)*38cm(height)
* Weight( include the batteries): about 220g

Specification:

* The following specification all adapt for the following conditions except for some special explanation:the meter locate the far-field region of the radiation source and the inductor aim at emissive source.
* ambient temperature:+23Â°CÂ±3Â°C
* relative air humidity: 25% to 75%
* inductive mode: electric field(E)
* frequency range: 50MHz to3.5GHz
* measuring range: continuous (CW)signal(f>50MHz): 20mV/m to 108.0V/m;
53uA/m to 286.4mA/m;
1uW/mÂ² to 30.93W/mÂ²;
0uW/cmÂ² to 3.093mW/cmÂ²
* dynamic range: about 75dB
* absolute error(lower than 1V/m and 50MHz): Â±1.0dB
* frequency response:

Taking into account the sensor CAL factor:

Â± 3.0dB (50MHz~800MHz) ;

Â±2.0dB(800MHz ~2.9GHz) ;

Â± 3.0dB (2.9GHz~ 3.5GHz) ;

Isotropic windage: about Â±1.0dB(f>50MHz)
overloading limit: 0.42mW/cm2(40V/m)
* temperature response: (0 to 50Â°C): Â±0.2dB
