| Brand Name: | Bestone |
| Model Number: | DP29-40,DP29-60,DP29-SF6 |
| MOQ: | 2 |
| Price: | 8866 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |

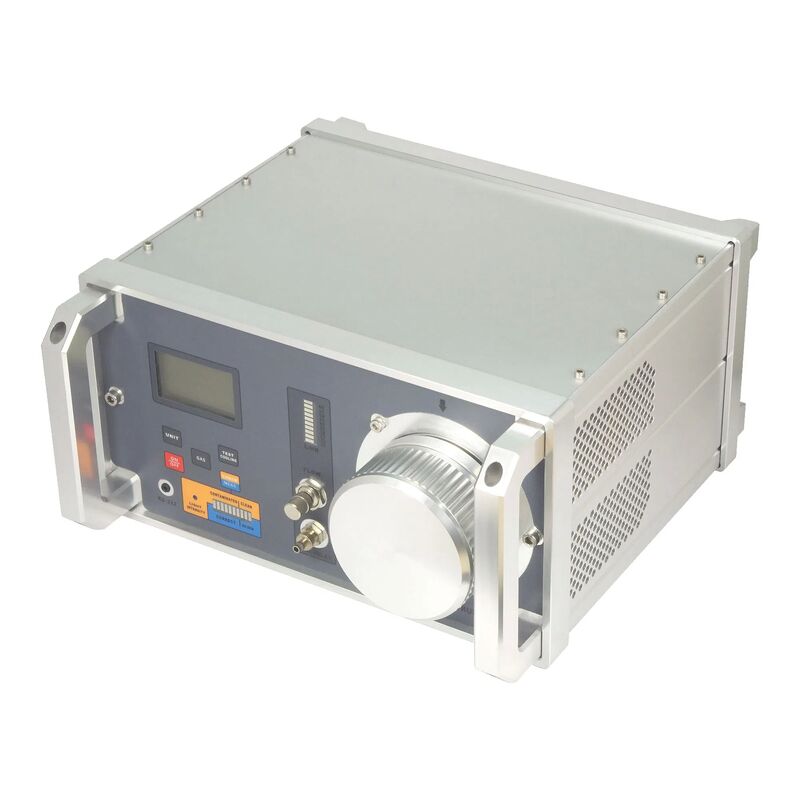

The DP29 is a multifunctional, portable dew point humidity meter specifically engineered for field applications. Utilizing the chilled mirror principle, this instrument delivers exceptional accuracy and reliability for moisture measurement in various industrial environments.
| Model | DP29-40 | DP29-60 | DP29-SF6 | |
|---|---|---|---|---|
| Range | Under 0°C | -40°C | -50°C | -50°C |
| Under 10°C | -40°C | -50°C | -50°C | |
| Under 20°C | -35°C | -45°C | -45°C | |
| Under 35°C | -30°C | -40°C | -40°C | |
| Accuracy | ≤±0.2°C,±1Digit | |||
| Repeatability | ≤±0.1°C,±1Digit | |||
| Resolution | 0.1°C | |||
| Default Output | USB | |||
| Optional Output | ±10mv/°C (0°C= 0mv) or 4mA-20Ma | |||
| Measurement Principle | Chilled Mirror | |||
| Refrigeration | Semiconductor Refrigeration | |||
| Inlet Flow | 15L/h~60L/h, Generally 30L/h~40L/h | |||
| Inlet Pressure | 10mbar~10bar (1kpa~1Mpa) | |||
| Response Time | 2°C/Second (Maximum) | |||
| Voltage | 220VAC±10%,50HZ/60HZ | |||
| Pump | Optional Accessory | |||
| Mirror Check | Press the Mode Conversion Key to mirror check mode ('CH’ on the display), and check manually | |||
| Instrument Check | Press the Test Cooling Key, open the measurement probe, and check manually at mirror check mode. | |||
| Consumption | About 160 Watts | |||
| Temperature | 0°C~50°C | |||
| Humidity | < 90% , No Condensation | |||
| Dimension | 342(W)mmx140(H)mmx326(D) mm | |||
| Weight | About 7.22kg | |||
| Standard Accessories | Main Unit Inlet Tube (FEP, 3m), With Connector Instruction Manual Packaging Box |
|||
| Optional Accessories | RS-232C Data Cable with Software | |||
