| Brand Name: | Bestone,Benetech |
| Model Number: | GT230,GT231 |
| MOQ: | 20 |
| Price: | EXW US$45~US$55 |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union |

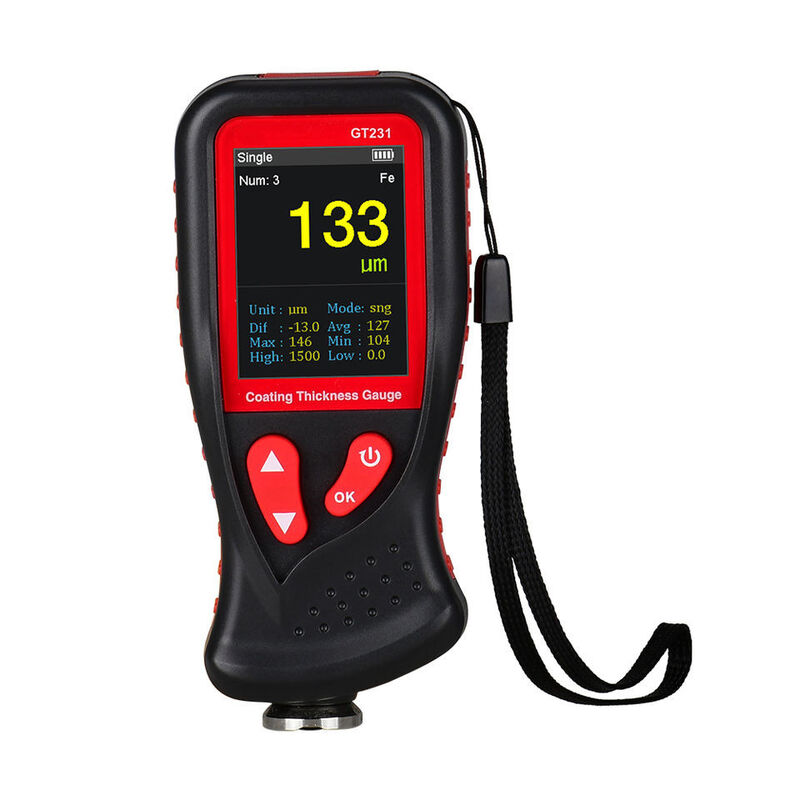

This Coating Thickness Gauge thermometer possesses the following features:
1. Menu operation and color-screen HD display.
2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.
3. Two measurement methods: single measurement, continuous measurement.
4. Basic calibration and Zero-point calibration available.
5. Metric/imperial unit and storage function.
6. Screen rotation, charge protection, multi-interface displays, screen brightness selection.
7. Automatic shutdown.
|
GT230 |
GT231 |
|
|
Measurement range |
0- 1300µm/51mil |
0- 1800µm/70.8mil |
|
Resolution |
( 0.1 µm(<100µm), 1 µm( ≥100µm))/0.1 mil |
|
|
Measurement error |
≤150µm ±5µm |
|
|
|
>150µm ±(3%H+1µm) |
|
|
Minimum diameter of magnetic metal substrate |
12mm |
|
|
Minimum thickness of magnetic metal substrate |
0.5mm |
|
|
Minimum radius of curvature for magnetic convex substrate |
2mm |
|
|
Minimum radius of curvature for magnetic concave substrate |
11mm |
|
|
Minimum diameter of non-magnetic metal substrate |
50mm |
|
|
Minimum thickness of non-magnetic metal substrate |
0.5mm |
|
|
Working voltage |
DC 3.7V (Lithium battery capacity 1000mAh) |
|
|
Number of data storage |
Max. 1500 pens |
|
|
Size |
52.9*26*117mm |
|
|
Weight |
102.4g |
|
