| Brand Name: | Wintact,Bestone |
| Model Number: | WT2110 WT2110B |
| MOQ: | 20 |
| Price: | EXW US$60~US$69 |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union |

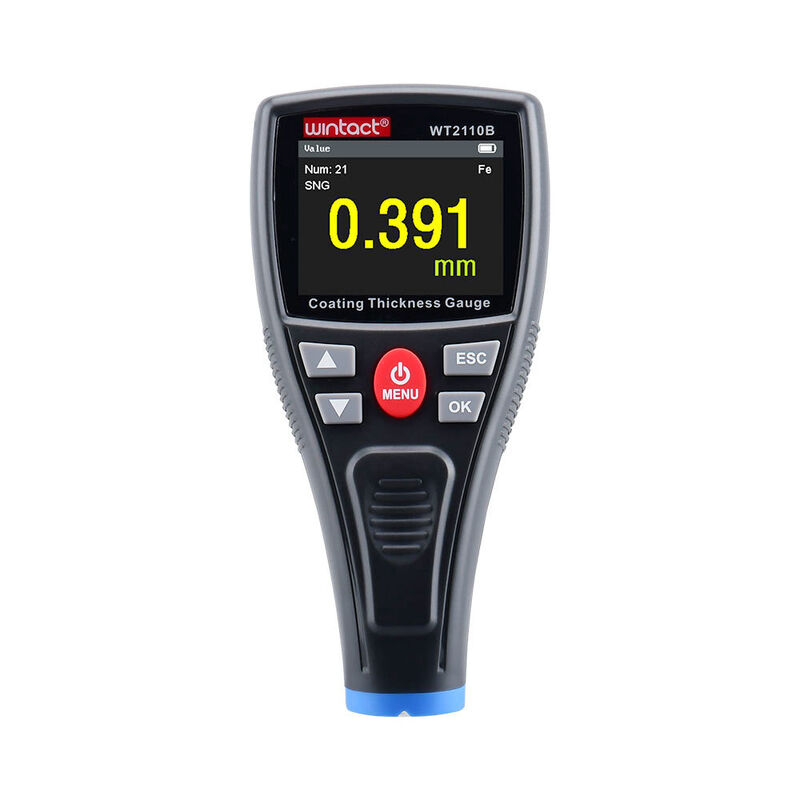

with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates. At the same time, it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas. This product is a color-screen portable coating thickness gauge.
| Model | WT2110 | WT2110B |
|---|---|---|
| Measurement range | 0~1500μm/0~59mil/0~1.5mm | 0~1500μm/0~59mil/0~1.5mm |
| Resolution | (0.1μmm(<100μm),1μm(≥100μm))/0.1mil/0.001mm | |
| Measurement error | ≤150μm: ±5μm >150μm: ±(3%H+1μm) |
|
| Min. diameter of magnetic metal substrate | 12mm | |
| Min. thickness of magnetic metal substrate | 0.5mm | |
| Minimum radius of curvature for magnetic convex substrate | 2mm | |
| Minimum radius of curvature for magnetic concave substrate | 11mm | |
| Minimum diameter of non magnetic metal substrate | 50mm | |
| Minimum thickness of non- magnetic metal substrate | 0.5mm | |
| Operating temperature range | 0~40℃ | |
| Work humidity range | 10~95%RH | |
| Power supply | 1000mAh Lithium battery (5V1A power adapter) | |
| Temperature range of operation | 0～40℃ | |
| Dimension | 70.30*38.6*149.59mm | |
| Weight | 108g | |
