Ultrasonic Thickness Meter TM-1240 with Automatic Memory Material Code

Name: Ultrasonic Thickness Meter TM-1240 with Automatic Memory Material Code
Brand: Shenzhen Bestone Industrial Co.Ltd.
SKU: TM-1240
Price: 195 USD
Availability: InStock

Brand Name:	Bestone
Model Number:	TM-1240
MOQ:	1
Price:	US$195
Delivery Time:	3-5 working days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS

Document:

The catalog of Ultrasonic T...40.pdf

Model NO.:

TM-1240

Operating Principle:

Ultrasonic

Sound Velocity:

1000~9999 M/S

Transport Package:

Box And Carrying Bag

Specification:

CE, ROHS

Trademark:

BESTONE

Origin:

China

HS Code:

9031809090

Packaging Details:

plastic carrying case and white paper box

Supply Ability:

More than 500pcs per month

Highlight:

Wide Range Ultrasonic Thickness Meter

High Power Emission Ultrasonic Thickness Meter

Automatic Memory Material Code Thickness Measurement Device

Product Description

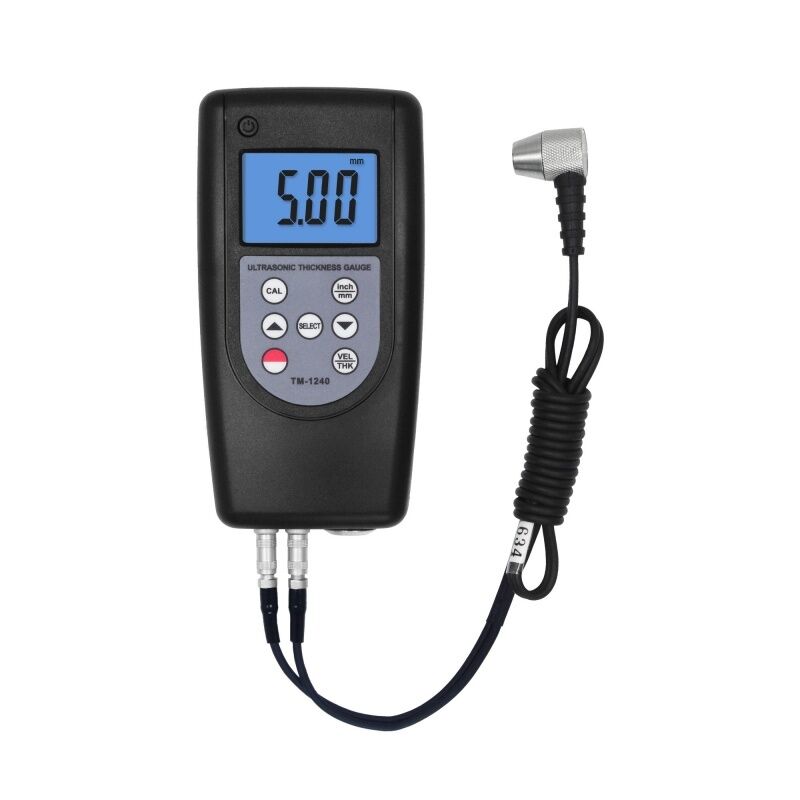

Ultrasonic Thickness Meter TM-1240 (Enhanced Type, Wide Range)

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and similar equipment in petroleum, shipbuilding, power station, and machine manufacturing industries. Applicable to measure the thickness of various materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron.

Key Features

High power emission and broad band receiving sensitivity for compatibility with different frequency probes
Capable of measuring rough surfaces, including cast iron
Automatic memory for material code and sound velocity values
Coupling symbol indication during measurement
Manual or automatic power off functionality
Multiple data output options: USB, RS-232, and Bluetooth

Technical Specifications

Display: 4 Digit, 10 mm LCD
Operating Principle: Ultrasonic
Measuring Range: 0.75~400mm (45# steel, dependent on probe)
Battery Indication: Low battery indication
Sound Velocity: 1000~9999 m/s
Lower Limit Steel Pipes: Φ15 x 2.0 mm, Φ20 x 3.0 mm (determined by transducer)
Calibration Block: Included
Resolution: 0.1mm / 0.01mm / 0.001inch
Accuracy: ± (0.5%n + 0.1)
Power Off: Auto power off & manual power off
Operating Conditions: Temperature: 0~40°C, Humidity: < 85% RH
Power Supply: 4 x 1.5 V AAA (UM-4) Battery
Dimensions: 140 x 72 x 34 mm
Weight: 185 g (not including batteries)

Standard Accessories

Main Unit
5MФ8 Standard Sensor
Coupling Agent
Carrying Case
Operating Manual

Optional Accessories

RS-232C Data Cable with Software
Bluetooth Data Adapter with Software

Material Selection Codes

Code	Material	Code	Material
Cd01	Steel	Cd08	Polyethylene
Cd02	Cast Iron	Cd09	PVC
Cd03	Aluminum	Cd10	Gray Cast Iron
Cd04	Red Copper	Cd11	Nodular Cast Iron
Cd05	Brass	xxxx	Sound Velocity
Cd06	Zinc
Cd07	Quartz Glass
