| Brand Name: | Benetech,Bestone |
| Model Number: | GM100,GM100+,GM130 |
| MOQ: | 20 |
| Price: | EXW US$53~US$82 |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union |

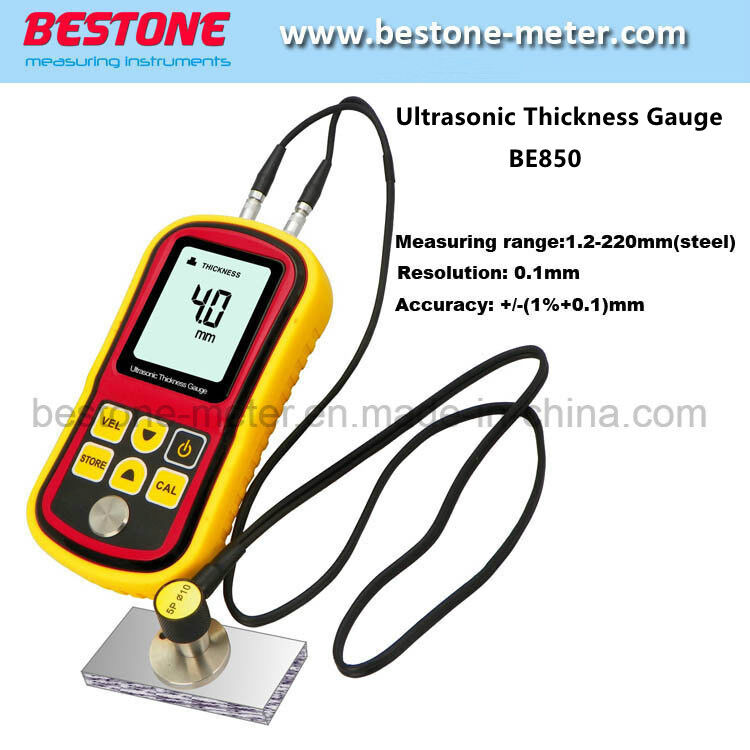

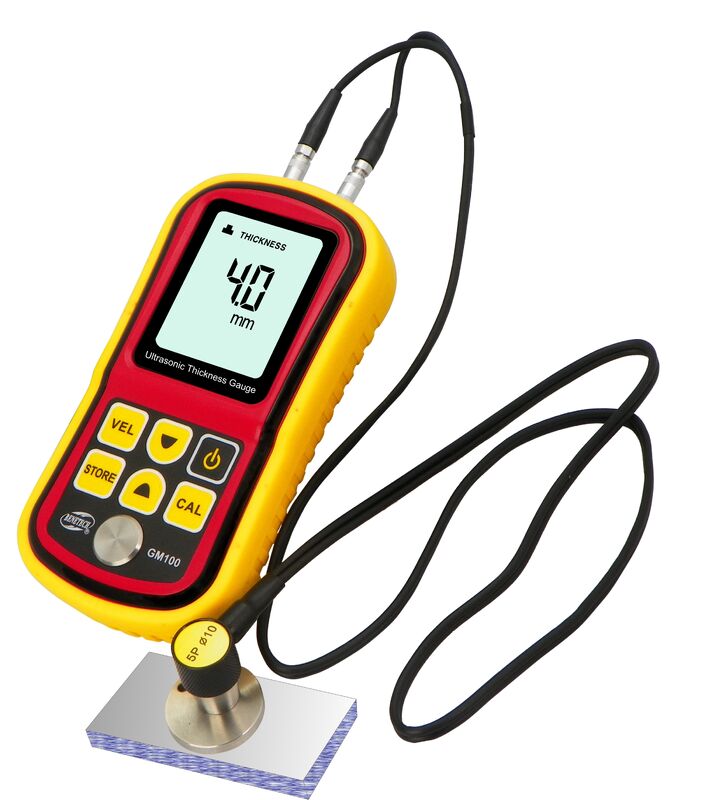

1). Introduction This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by microprocessor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware /parts in industrial realm; one of its important applications is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.
2). Scope of application This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, acrylic, glass etc., as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron due to its big crystalloid composition.
| function | GM100 | GM100+ | GM130 |
|---|---|---|---|
| Measuring range | 1.2 to 225.0mm (steel) | 1.20 to 300.00mm(steel) | 1.00 to 300.0mm(steel) |
| Accuracy | ±(1%H+0.1) mm H denotes the measured thickness. | ±(1%H+0.05) mm H denotes the measured thickness. | ±(1%H+0.1mm) mm H denotes the measured thickness. |
| Working frequency | 5MHz | 5MHz | 5MHz |
| Resolution | 0.1 mm | 0.01mm (1.20 to 99.99mm) 0.1 mm (100 to 300mm) | 0.01mm (1.00 to 99.99mm) 0.1 mm (1 00 to 300mm) |
| Minimum limit for tube measuring(steel) | Φ20*3mm (steel) Accuracy: +/- (1%H+0.1) mm H denotes the measured thickness. | Φ20*3mm(steel) Accuracy: +/-(1%H+0.05) mm H denotes the measured thickness. | Ø15*2.0mm (Ø6mm transducer) Ø20*3.0mm (Ø10mm transducer) |
| Sound velocity range | 1000 to 9999 m/s | 1000 to 9999 m/s | 1000 to 9999 m/s |
| Operating environment | Operation temperature: 0 to 40℃ Relative Humidity: <90% | ||
| Power supply | 1.5V AAA * 3 PCS | ||
| Weight | 202g | 202g | 223g |
| Size | 72*29*146mm | ||
