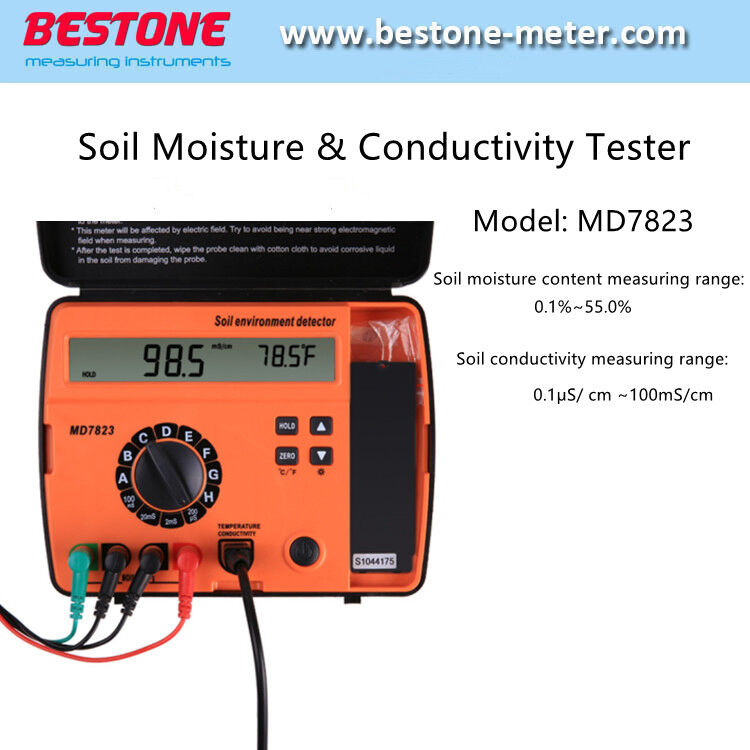

This tester is a precision instrument, suitable for measuring the absolute moisture content of various types of soil, soil electrical conductivity (EC) and temperature. It is widely used in water-saving irrigation, modern agricultural planting and agricultural scientific research and other fields.
Performance features
* Use high frequency to measure soil moisture content
* Use AC signal to measure soil conductivity and can automatically perform temperature compensation
* Can accurately measure soil temperature
* With temperature switching function in Fahrenheit and Celsius
* With Max.value and Min.value memory function
* Large screen LCD display to ensure clear readings
* Low voltage automatic prompt function
Technical specifications
Soil moisture content measuring range: 0.1%~55.0%
Accuracy: ±2%
Resolution: 0.1%
Soil conductivity measuring range: 0.1μS/ cm ~100mS/cm
Accuracy: ±5 μS/cm(200μS/cm)
±0.05 mS/cm (2mS/cm)
±0.5 mS/cm (20 mS/cm)
±5 mS/cm (100 mS/cm)
Resolution: ±0.5 μS/cm (200μS/cm)
±0.005 mS/cm (2mS/cm)
±0.05 mS/cm (20 mS/cm)
±0.5 mS/cm (100 mS/cm)
Temperature range: -20ºC~100ºC (-4ºF~212ºF)
Accuracy: ±0.5ºC (±0.9ºF)
Resolution: 0.1ºC (0.2ºF)
Use environment: temperature: 0ºC~40ºC, humidity: 5~80%RH
Storage environment: Temperature: -10ºC~50ºC, humidity: 5~90%RH
Power supply: 14500 3.7V lithium ion rechargeable battery x 2 battery holder x 2
Weight: 500g (excluding batteries and probes)
Size: 210×160×60mm (host)
Length 410 mm (soil moisture content probe)
300 mm long (conductivity and temperature probe)
Display description: 1. Zero Prompt
2. Main display area
3. Conductivity unit
4. Secondary display area
5. Reading hold prompt
6. Percentage sign
7. Max.value and Min.value prompt
Panel Description:
1. LCD window
2. Moisture probe jack
3. Rotary switch
4. Conductivity probe socket
5. Power switch
6. Battery compartment
7. Moisture zero key, temperature unit switch key
8. Down key, backlight switch key
9. Up key, Max.value and Min.value lock key
10. Hold key
11. Conductivity temperature probe
12. Moisture probe
