| MOQ: | 1 |
| Price: | 169 |

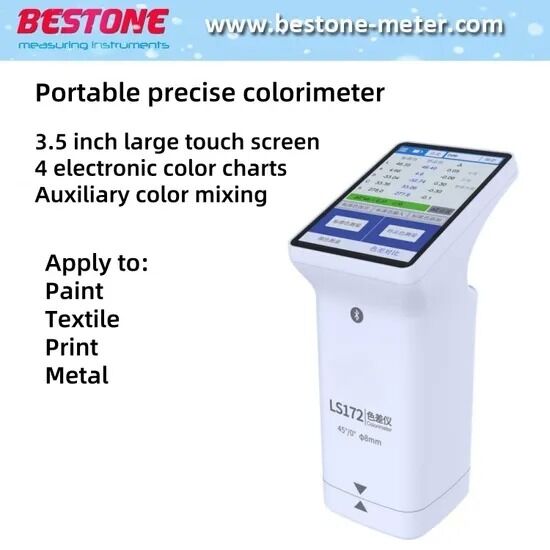

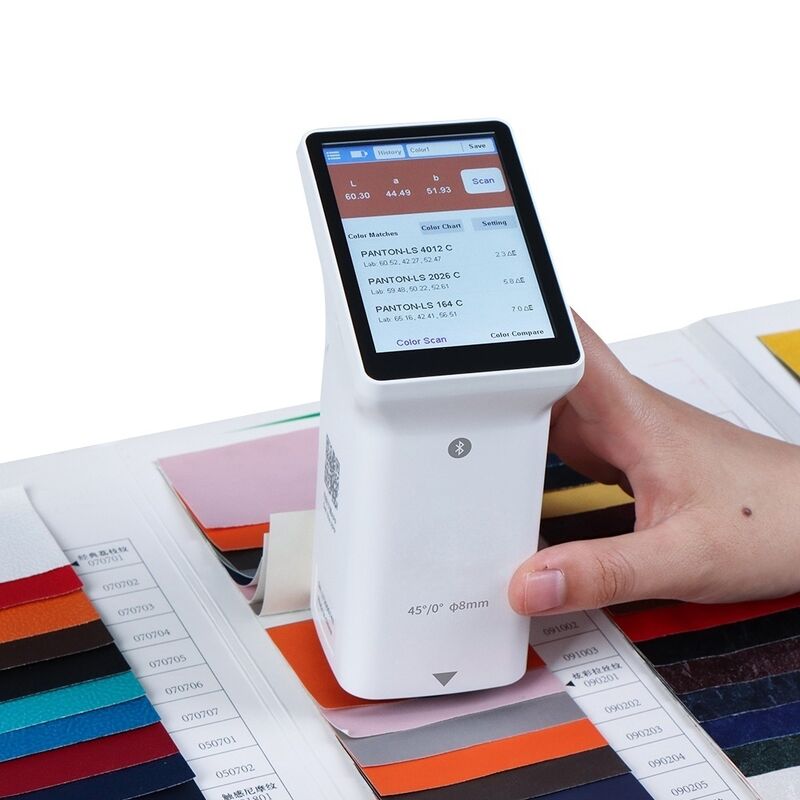

LS172 handheld colorimeter, using 3.5 inches IPS color screen capacitive touch screen. Designed with 45°/0°optical geometry, it is usually used in packaging, printing and other industries. In two simple steps it can quickly realize the color difference comparison. Multiple electronic color cards are built-in, which quickly match three closest color card numbers when color measuring. With QC function, it can realize batch inspection and improve inspection efficiency. It can be used with mobile APP and PC software, and supports multiple ways of color sharing and exporting. It has CE certificate and is guaranteed to pass the test of authoritative metrology organizations
1. 45°/0°optical geometry design, which is used in packaging, printing and other industries
2.Touch screen controls, 30 °viewing angle design, so that good user operation experience.illumination geometry: 45°/0° (45° annular illumination, 0 viewing angle)
iIIumination light source: Full spectrum LED light source
Measuring aperture: 8mm
Measurement conditions: Light source D65, field of view 10
Measuring time: About 1s
Color space: Cle Lab, Luv, Lch, Yxy, CMYK, RGB, Hex
Color difference formula: â–³E*ab, â–³E*UV, â–³E*94, â–³E*CmC(2:1), â–³E*cmC(1:1), â–³E*O
Repeatability: Standard deviation AE*abs0.03(Measurement condition: the average value of 30measurements on the white tile at an interval of 3s after calibration.
Dimension: 86mmx62.5mmx158mm
Weight: About 225g
Power supply: Rechargeable lithium battery3.7V@4000mah, can measure 10,000 times continuously under full charge
Display: 480x320 dot matrix IPS color screen
Language: Simplified Chines, English
Operating temperature range: 0~45C, 0~85%RH (no condensation)
Storage temperature range: -25~55C, 0~~85%RH (no condensation)
