| MOQ: | 1 |
| Price: | 350 |
Application:
The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection, coal mine, residential places, and other natural and wide ranges of industrial environments.
Product Features:
1. Handheld, industry use
2. Rugged ABS+PC IP54 case with CITY sensor, CE, RoHS approved
3. Adjustable high & low alarm point
4. Visual & audible alarm
5. SETL & TWA alarm
6. Low battery warning
7. Rechargeable battery
8. LCD screen display
9. With Stainless Steel belt clip
10. Support data record, data storage and data transfer
11. Factory offer, more professional
12. Welcome OEM and custom design
13. Gas sensor is replaceable, you can use this case for below sensors:
CO, O2, CO2, CL2, NO, NO2, SO2, H2, etc
14. With air sampling pump for gas leak detection.

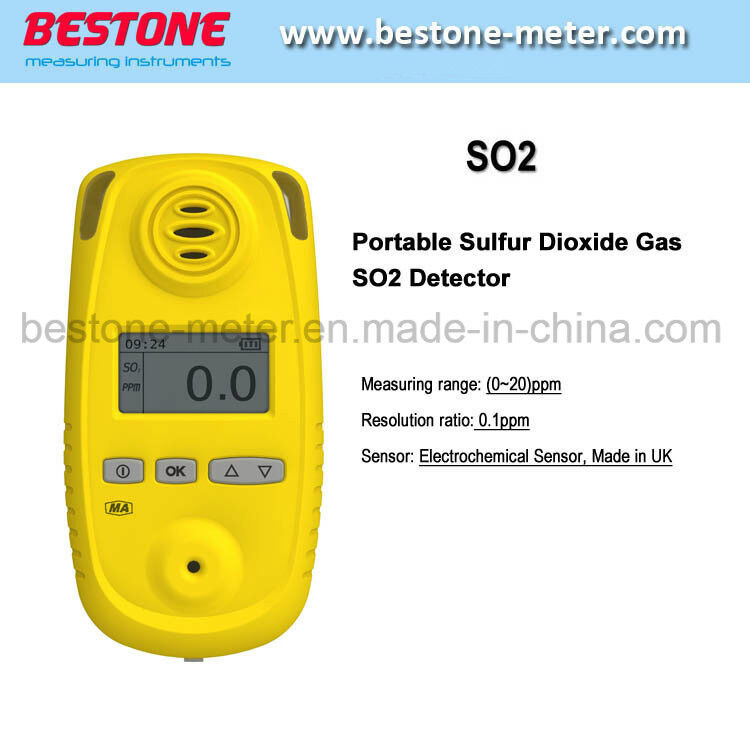

Technical Parameter:
|
Gas detected |
Sulphur Dioxide (SO2) |
|
Measuring range |
(0~20)ppm |
|
Resolution ratio |
0.1ppm |
|
Sensor |
Electrochemical Sensor, Made in UK |
|
Sensor lifetime |
≥2 year |
|
Response time |
≤45s(T90) |
|
Alarms |
Audible--buzzer with ≥75dB audible Visible--flashing red LED, ≥20m visible |
|
Alarm point |
Fully adjustable |
|
Data logging (optional) |
Continuous Data logging (9000 data at configurable 0.1-10 minutes intervals) |
|
Continuous working time |
>3 months ( without backlight) |
|
Working temperature |
-25ºC~+55ºC, short time: -40ºC~+55ºC |
|
Display |
Liquid crystal display (LCD) |
|
Battery model |
PL123450, 3.7V/1500mA |
|
Charging time |
4-5 hours |
|
Dust and water resistance |
IP65 |
|
Size & Weight |
105*54*32mm/200g |
|
Ex sign |
Exibd I |
