| Brand Name: | Bestone |
| Model Number: | NIR1700 NIR2600 |
| MOQ: | 2 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

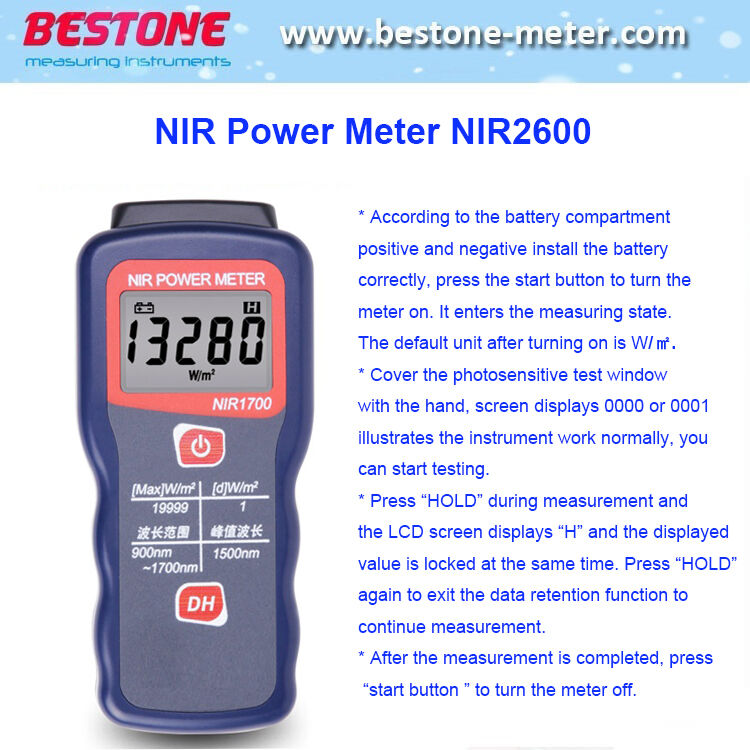

The NIR1700 is designed to measure radiation intensity from infrared sources (sun, infrared lamps) and test the barrier performance of building materials, automotive insulation glass, and heat insulation films against infrared radiation.
The NIR2600 is optimized for energy testing applications including infrared bath heaters, infrared physiotherapy lamps, and infrared electric heaters. Both models support various infrared applications in heating, physiotherapy, night vision, communication, navigation, and agricultural applications.
| Display | 4-1/2-digit LCD display, maximum display value 19999, overload displays "OL" |
|---|---|
| Resolution | 1W/m² |
| Measurement Error | ±(10%R+2dgt) where R is the reading |
| Temperature Error | ±0.38W/m²/°C when deviating from 25°C |
| Drift | Less than ±1.5% per year |
| Measuring Range | 1~19999 W/m² |
| Wavelength Range (NIR1700) | 900nm~1700nm, peak wavelength 1500nm |
| Wavelength Range (NIR2600) | 900-2600nm, peak wavelength 2400nm |
| Peak Wavelength | 1500nm (NIR1700), 2400nm (NIR2600) |
| Sampling Time | 2.5 times per second |
| Operating Conditions | 0℃ to 40℃, <80% RH |
| Storage Conditions | -10℃ to 50℃, <70% RH |
| Power Supply | 6F22 alkaline 9V battery |
| Dimensions | 132 × 60 × 38mm |
| Weight | Approximately 150g |
