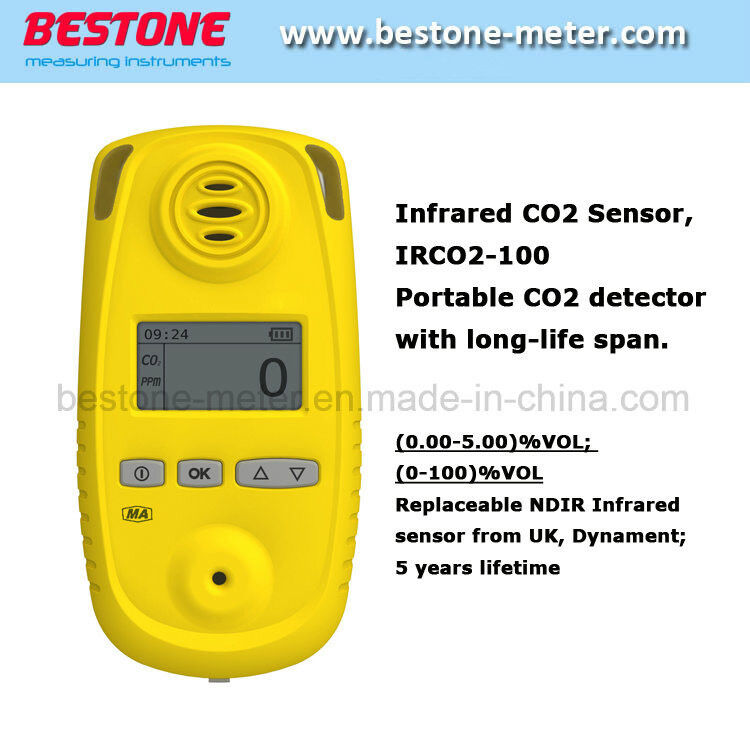

Be designed to measure carbon dioxide in enclosed environments or inaccessible areas.
Use it for applications like biological incubator monitoring, modified atmosphere packaging, fermentation vats & barrels, and as a CO2 sniffer for leak detection.
1. Intrinsically safe, CE certified
2. Portable, industrial use, higher sensitivity and accuracy
3. Imported high quality sensors
4. 4 layers PCB board
5. Fully configurable High-low alarming point, STEL & TWA
6. Energy saving Back-lit LCD display
7. Sampling pump and Data Logger available
|
Gas detected |
Carbon Dioxide (CO2) |
|
Measuring range |
(0~5000)ppm, (0~5)%vol, (0~100)%vol |
|
Resolution ratio |
1ppm / 0.01%vol |
|
Sensor |
Infrared Sensor, Made in UK |
|
Sensor lifetime |
≥5 year |
|
Response time |
≤50s(T90) |
|
Alarms |
Audible--buzzer with ≥75dB audible Visible--flashing red LED, ≥20m visible |
|
Alarm point |
Fully adjustable |
|
Data logging (optional) |
Continuous Data logging (9000 data at configurable 0.1-10 minutes intervals) |
|
Continuous working time |
>16h |
|
Working current |
< 1mA ( without backlight) |
|
Working temperature |
-25ºC~+55ºC, short time: -40ºC~+55ºC |
|
Display |
Liquid crystal display (LCD) |
|
Battery model |
PL123450, 3.7V/1500mA |
|
Charging time |
4-5 hours |
|
Dust and water resistance |
IP65 |
|
Size & Weight |
105*54*32mm/200g |
|
Ex sign |
Exibd I |
OPTIONS:
Free-easy-to-use GasCheck software
This device can add GasCheck software for setup, data logging, and real-time data analysis.
Interface display:
Comes with a CD, installing the software onto your computer.
* Can transfer real-time data from the device to your personal PC.
* Can continuously store history data , at least 9000 records in total.
* GasCheck runs on Windows 7, Windows 8, Windows XP
Sampling pump
· Help to pump the gases out of long distance or deep wells.
· Avoid gas leakage and errors when testing.
· With built-in filter makes it humidity and dust proof.
3 main categories for portable gas detectors and gas analyzers
Up to 5 gases detection for multi gas detectors/analyzers
1. Catalytic sensors for Explosive combustible/flammable gases
Methane(CH4), LEL, Butane(C4H10), Acetylene(C2H2), Propane(C3H8), etc.
2. Electrochemical sensors for toxic gases and Oxygen
Carbon monoxide(CO), Hydrogen sulfide(H2S), Hydrogen(H2), Chlorine(CL2), Nitric Oxide(NO), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Ammonia(NH3), Ethylene(C2H4), ETO/Ethylene Oxide(C2H4O), Hydrogen Chlorine(HCL), Hydrogen Cyanide(HCN), Hydrogen Fluoride(HF), Phosphine(PH3), etc.
3. Infrared sensors for Methane biogas and Carbon Dioxide(CO2)
